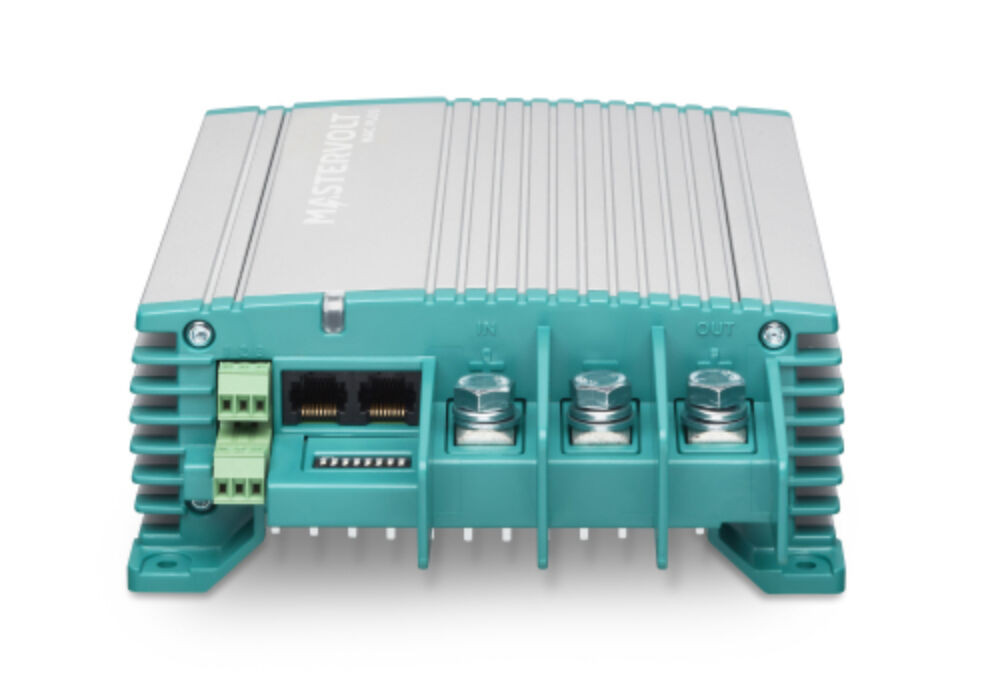

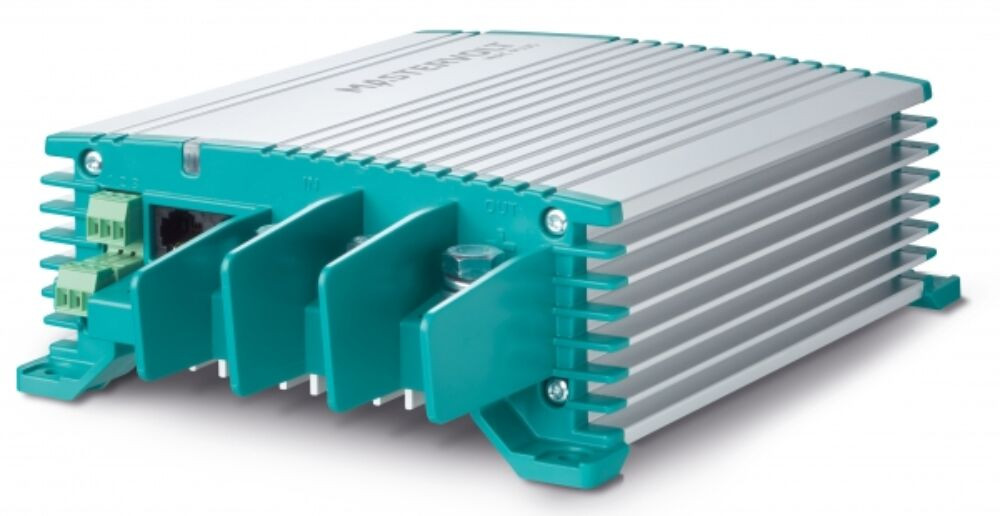

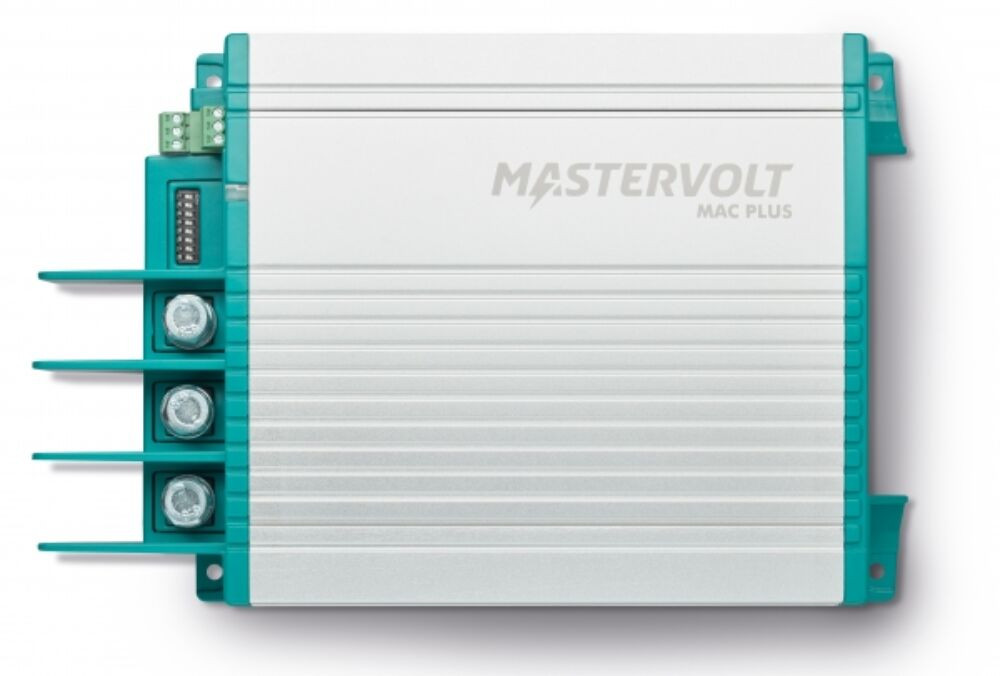

Mastervolt Mac Plus 24/24-30

Original price: Price: 284 186 Ft
without VAT: 223 769 Ft+VAT (60 418 Ft)

Special price: Price: 260 499 Ft
without VAT: 205 117 Ft+VAT (55 382 Ft)

Mastervolt Mac Plus 24/24-30

Name: Mastervolt Mac Plus 24/24-30
Brand: MASTERVOLT
SKU: MVT-81205400
Price: 260499 HUF
Availability: InStock

In stock

Original price: Price: 284 186 Ft
without VAT: 223 769 Ft+VAT (60 418 Ft)

Special price: Price: 260 499 Ft
without VAT: 205 117 Ft+VAT (55 382 Ft)

Begin: 27/03/2025 While stocks last!

Saving 23 687 Ft

Manufacturer:

MASTERVOLT

Manufacturer Article number:

81205400

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Boost the charging voltage of your service battery!

Details

Mastervolt Mac Plus 24/24-30

Boost the charging voltage of your service battery!

Charging the service batteries on board of a vehicle or vessel can be challenging. Recharging tends to take a long time and batteries may not receive a full charge. This is a common problem found in boats, service vans, campers and trucks. Smart alternators and start/stop systems make the problem even worse.

Robust DC-DC charger guarantees optimal condition of your service battery

Traditionally, a service battery is linked to the starter battery by means of a charge relay. The starter battery is located close to the alternator and receives most of the charge current. However, the service battery is usually further away. Long cables cause voltage drop, leading to slow charging, resulting in failing appliances and premature failure of the battery.

Modern, fuel efficient engines are equipped with smart alternators, following regulations such as Euro 5 and Euro 6. Instead of a constant output, smart alternators provide a variable voltage; after a brief charging period, voltage is reduced and the charging stops. Furthermore, the energy produced by regenerative braking leads to voltage peaks. Service batteries coupled in the traditional way will receive hardly any charge and may be damaged by these peak voltages.

To solve these issues, Mastervolt introduces the Mac Plus DC-DC chargers, available in 12 V or 24 V. The Mac Plus monitors the service battery and compensates the voltage loss. The proven 3-step charge method ensures a quick and safe charge. Moreover, by stabilizing the charge voltage, Mac Plus protects your service battery and sensitive equipment.

Features

Fast and safe charging during short trips.
Fanless design for silent operation.
Suitable for flooded, Gel, AGM and Li-Ion batteries (incl. LiFePO4).
Charges even fully depleted batteries.
Engine run detection protects starter battery.
Adjustable current limits to meet Euro 5/6 requirements.
Voltage stabilisation protects sensitive equipment, lights and loads.
Parallel operation to obtain charging capacities well over 100 Amps.
MasterBus for intelligent system monitoring and automation.
Temperature compensation and voltage sense for an optimal charging result.
E-mark certification for mobile applications.
Power supply mode.
Heavy duty connections for easy installation and quick set up via DIP switches.

The non-isolated Mac Plus models have an electrical connection between the input and output.
Features:

Low costs.
Efficient: low heat generation.
Compact.
Suited to applications with negative earthing.

Applications

Boost charge voltage when service battery is located further from charging source or in systems with a smart alternator. When a stable power supply or different system voltage is needed.

Euro 5/6 solution

Charging service batteries in Euro 5/6 applications?
The Mac Plus provides constant power to the service battery, even when the alternator is inactive.

Parallel operation

The parallel configuration of several units will provide you over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimum power loss when switching from 24 to 12 V and vice versa.

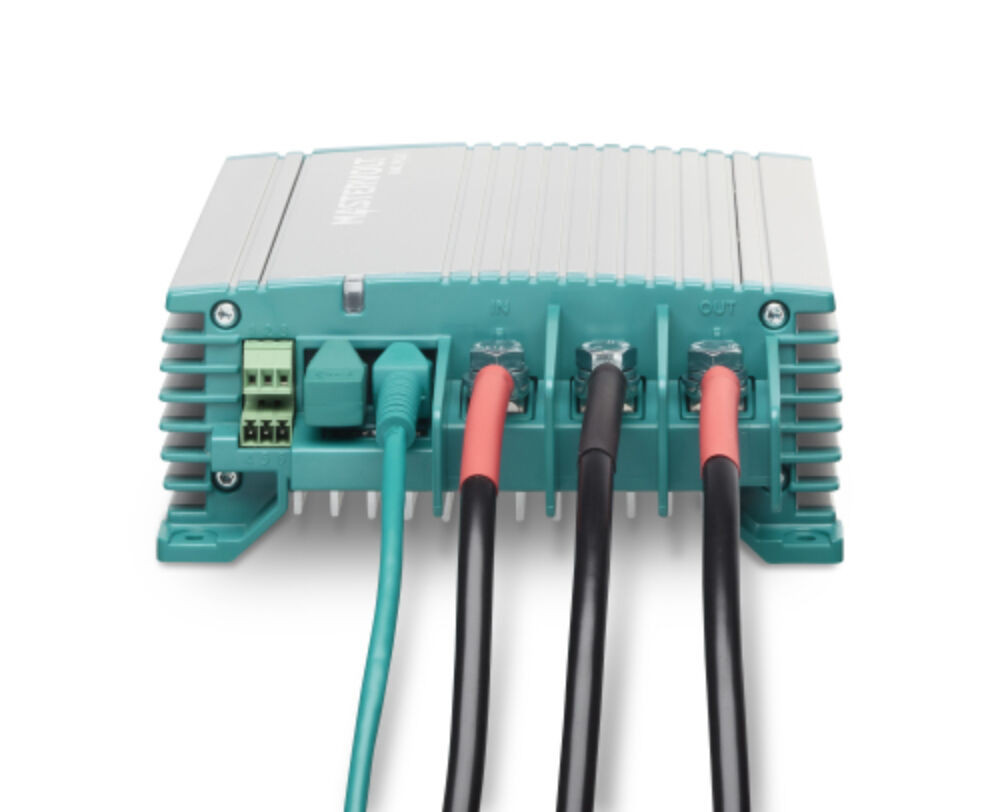

Solid Connections

Galvanized brass connection block with screw terminal or chrome-plated fast-on for DC in/out for the Mac/Magic models. The robust M8 connections of the Mac Plus prevent any loosening due to vibrations.

Info

Type of energy supply:

Feszültségátalakító

Input voltage (DCV):

Output voltage (DCV):

Current (A):

Power (W):

810

Network Protocol:

Masterbus

Number of outputs:

IP rating:

IP23

Galvanic isolation:

NEM

Compliance:

CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected

Website:

https://www.mastervolt.com/products/mac-plus-serie...

Weight:

2 kg/db

Technical specification

Specifications battery charger
Battery temperature sensor	yes, included
Battery voltage sense	yes

General specifications
Status indicator	yes, 3-color LED
Output voltage	20-30 V
Nominal output voltage	24 V
Output voltage stabilisation	2 % at extremes of temps, load and input
Output voltage ripple (peak peak)	max. 1 %
Max. output power	850 W
Nominal output power	810 W
Max. output current	30 A
Output charge current (3-step mode)	30 A
Nominal input voltage	24 V
Input voltage range	19-30 V
Max. input current	30 A
Galvanic isolation	no
Voltage limited	yes
Efficiency	> 95 % (at nom. input voltage, full load); peak 97 %
Parallel configuration	yes
Alarm contact	yes, through MasterBus
MasterBus powering	no
Engine run signal input	yes (active high/active low)
DIP switches	yes, for basic setup
Dimensions, hxwxd	255 x 165 x 66 mm 10.0 x 6.5 x 2.6 inch
Weight	2 kg 4.4 lb
Compliance	CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected

Technical specifications
No-load consumption	< 2 mA
Charge characteristic	3-step+
Battery types	flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined
3-Step charge option	yes (DIP switch settings)
DC consumption	< 5 mA
Connections	3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 6-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement)
Temperature range (ambient temp.)	-25 °C to 60 °C; derating > 40 °C -13 °F to 140 °F
Cooling	natural cooling
Protection degree	IP23
Protections	overload, over temperature, DC short circuit, reversed polarity (fuse)
MasterBus compatible	yes
