Details

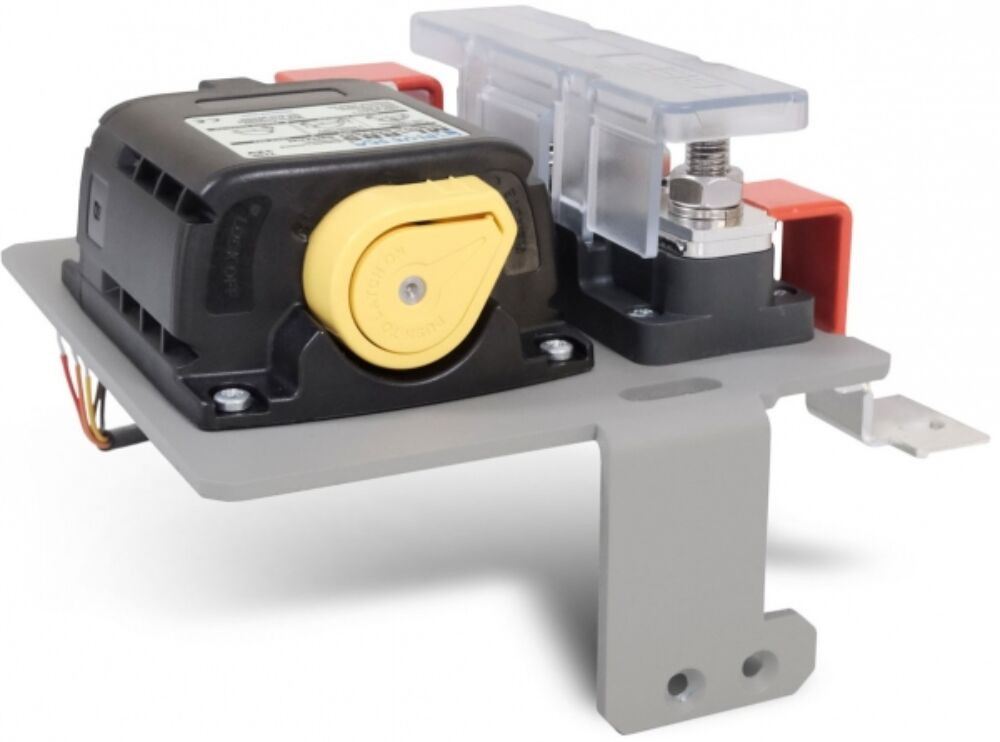

Ultra Connection Kit 12 V

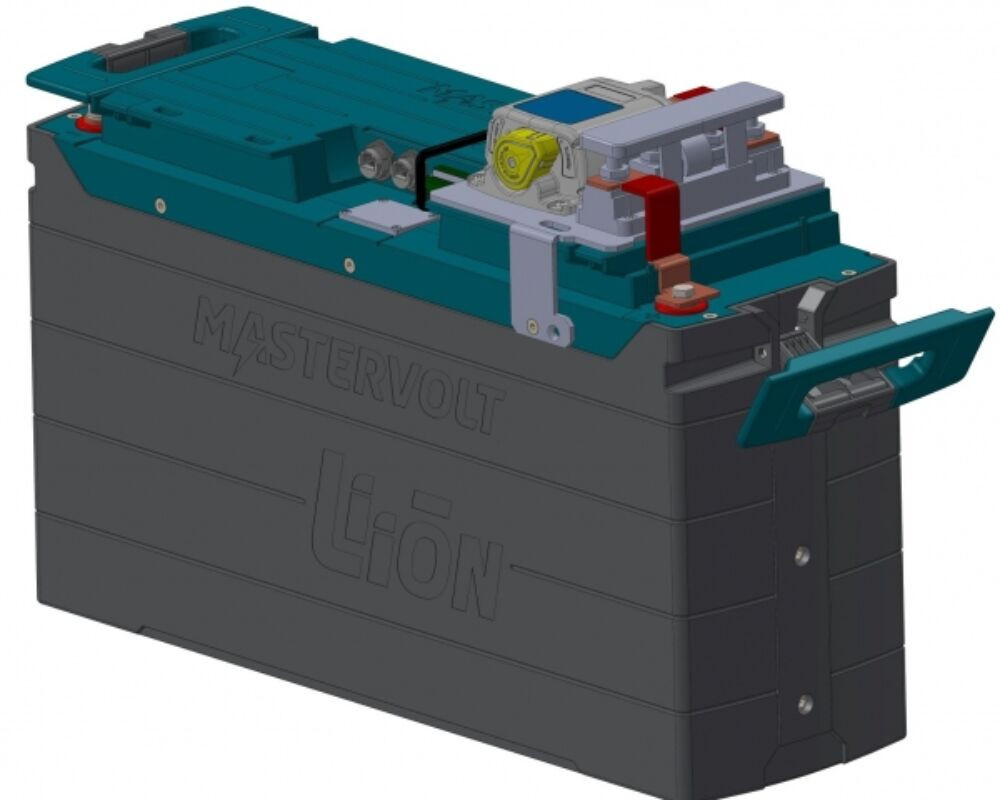

With the MLI Ultra Relay and Fuse Connect Kit, you can easily install all the required safety accessories in a safe, efficient, and compact way right on top of the MLI Ultra battery.

Without the need for power tools, you can get your system, safe and ready in just a few simple steps.

• Fast and easy installation.
• All necessary safety accessories in one kit*.

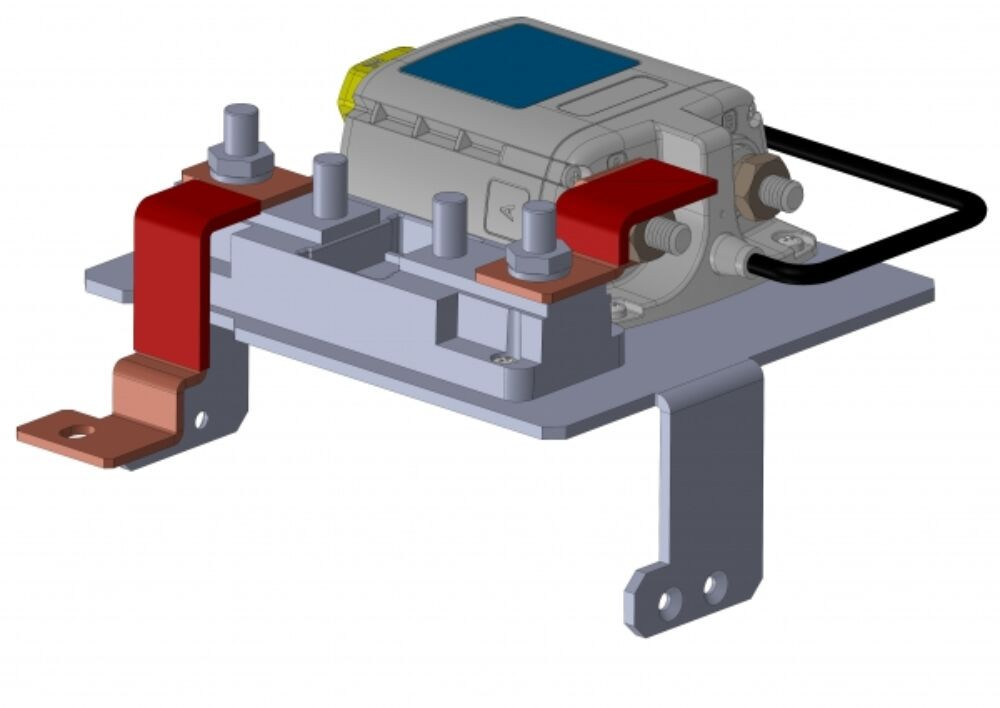

• Pre-assembled on an easy to mount bracket.
• Perfect fit for MLI Ultra 12/2750 and 12/5500.

* The T-fuse itself is not included in the kit. Order the right fuse rating (Compatible fuse rating: 225 – 400 Amp Class T-fuse) based on the requirements of your installation.







Info

Input voltage (DCV):

12

Output voltage (DCV):

12

Current (A):

300

Accumulator category:

Akkumulátor tartozékok

Website:

https://www.mastervolt.com/products/li-ion/ultra-c...

Weight:

2 kg/db

Technical specification



Specifications
General specifications
Compatibility	MLI Ultra 12/2750, MLI Ultra 12/5500
Max. current	300 A
Operating temperature	-25 °C to 50 °C -13 °F to 122 °F
Dimensions	total height increases by 65 mm / 2.5 inch
Weight	total weight increases by 2 kg 0.0 lb
Delivered with	mounting bracket, safety relay, T-fuse holder, busbar conductor (2x)
Technical specifications
Safety relay	12 V DC - 500 A
Max. voltage	64 V
