Marco PCS 12/24V Control panel for electronic pumps

Name: Marco PCS 12/24V Control panel for electronic pumps
Brand: MARCO
SKU: MCO-16520315
Price: 35184 HUF
Availability: InStock

In stock

Price: 35 184 Ft
without VAT: 27 704 Ft+VAT (7 480 Ft)

Manufacturer:

MARCO

Manufacturer Article number:

16520315

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Details

Marco PCS 12/24V Control panel for electronic pumps

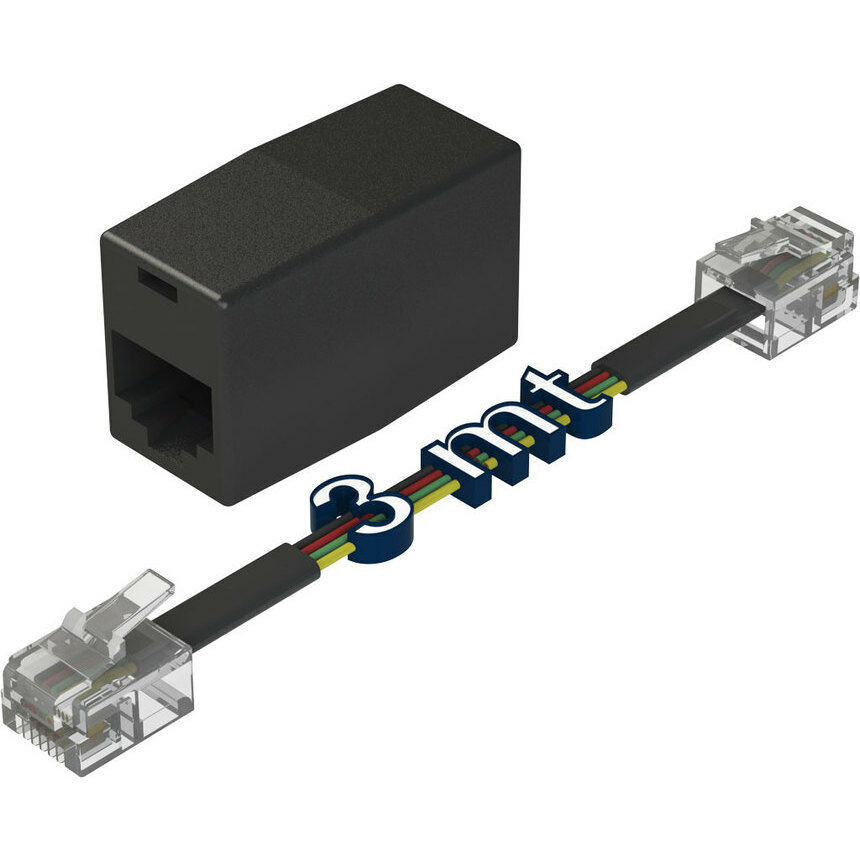

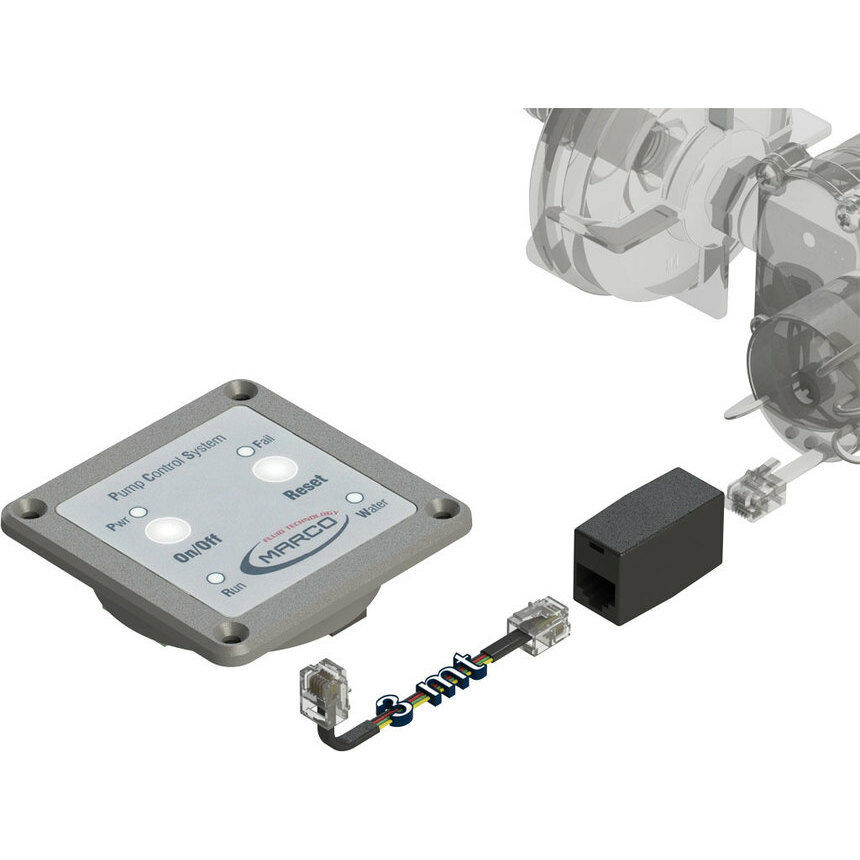

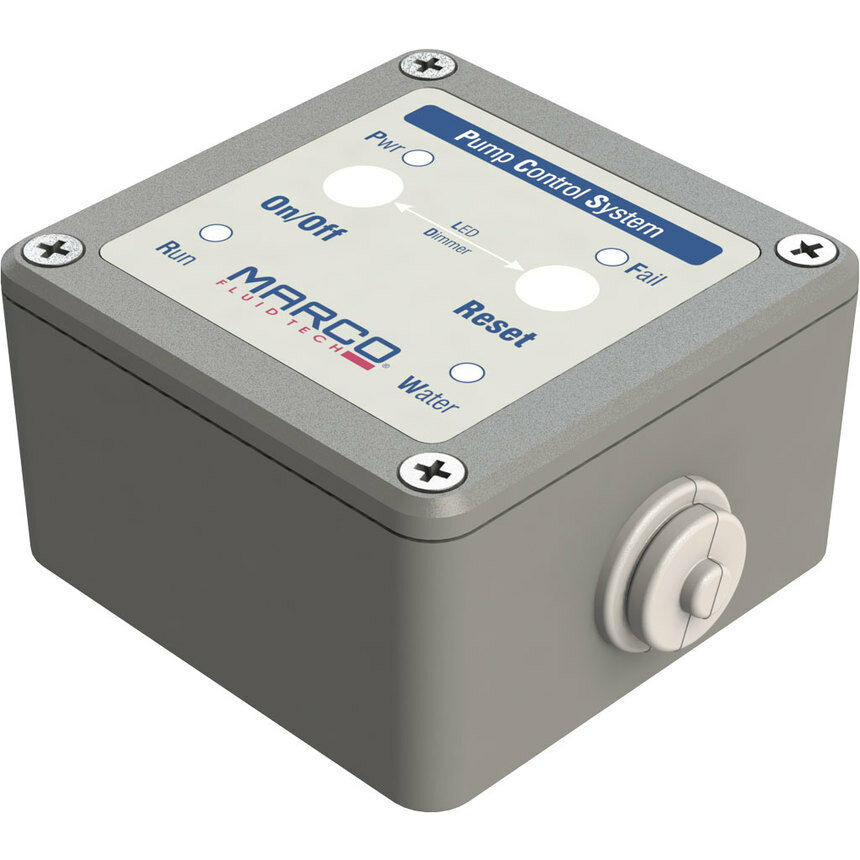

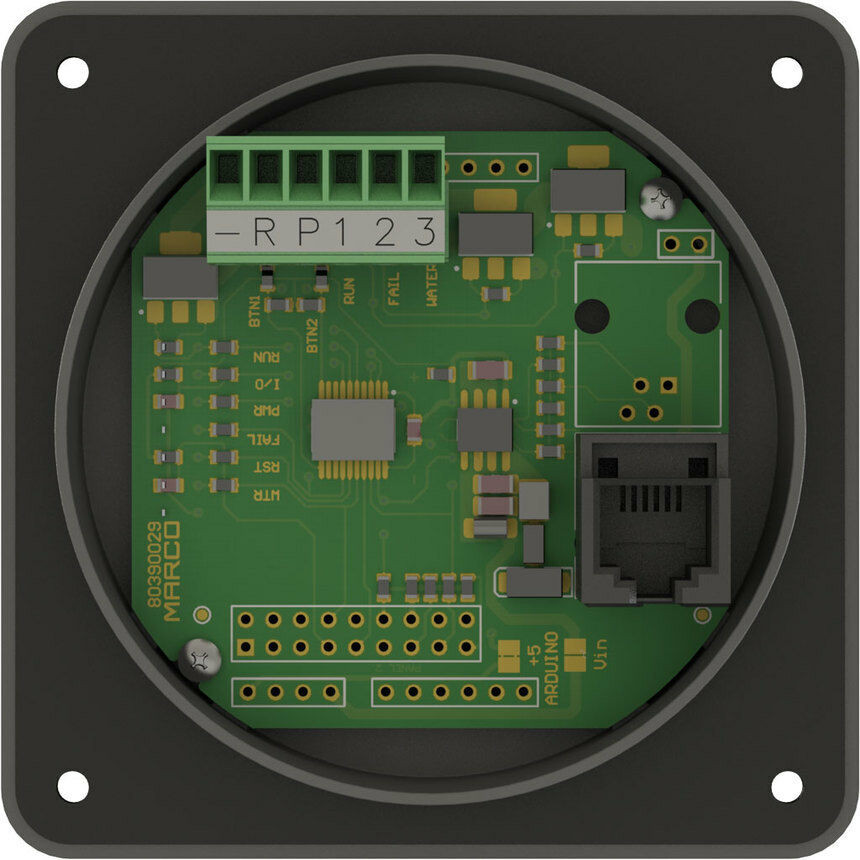

The control panel for electronic pumps allows to remotely monitor the operation of the pump and interact with it. It is in fact possible to see when the pump is On and if there is still liquid to be transferred. Moreover, in case of arrest due to end of liquid or overload you can reset the alarm and restart the system without having to turn off the power. Finally, you can turn Off and On the pump with the simple push of a button. The panel can be mounted or recessed in a circular hole of diameter 70 mm, or with external mounting by fixing the provided square box with two screws. To operate simply connect the pump with the 3m cable supplied or another 4-wire phone cord and double-ended RJ11 / 6. In the back there is a terminal block that allows you to replicate the buttons and LEDs of the panel on an external circuit: this allows you to individually control the features on the dashboard or in a device designed by third parties.

Info

Input voltage (DCV):

12/24

Water system category:

Egyéb

Website:

https://items.marco.it/en/pcs-control-panel-for-el...

Weight:

290 g/db

Technical specification

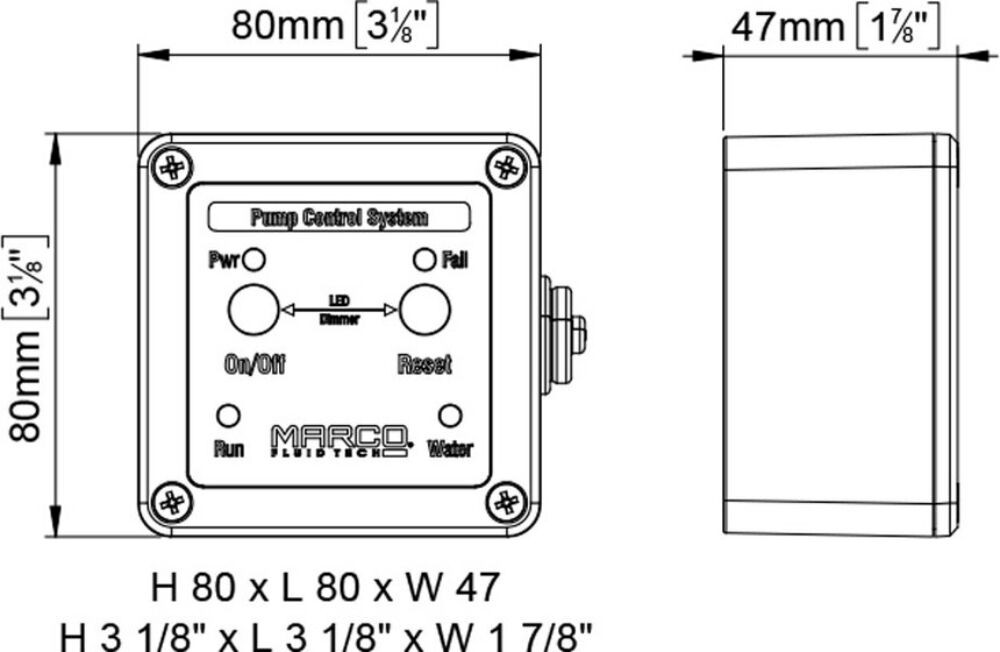

Part n.	Product Name		Voltage (V)	Bore (mm)	Connector	IP Protection	Dimensions (mm)
16520315	PCS		12/24	70	RJ11	65	80x80x46
