Blue Sea Systems Switch Battery e-Series ON/OFF, (Akkumulátor kapcsoló)

Price: 28 533 Ft
without VAT: 22 467 Ft+VAT (6 066 Ft)

Blue Sea Systems Switch Battery e-Series ON/OFF, (Akkumulátor kapcsoló)

Name: Blue Sea Systems Switch Battery e-Series ON/OFF, (Akkumulátor kapcsoló)
Brand: BLUESEASYSTEMS
SKU: BSS-9003E
Price: 28533 HUF
Availability: InStock

In stock

Price: 28 533 Ft
without VAT: 22 467 Ft+VAT (6 066 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

9003E-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Details

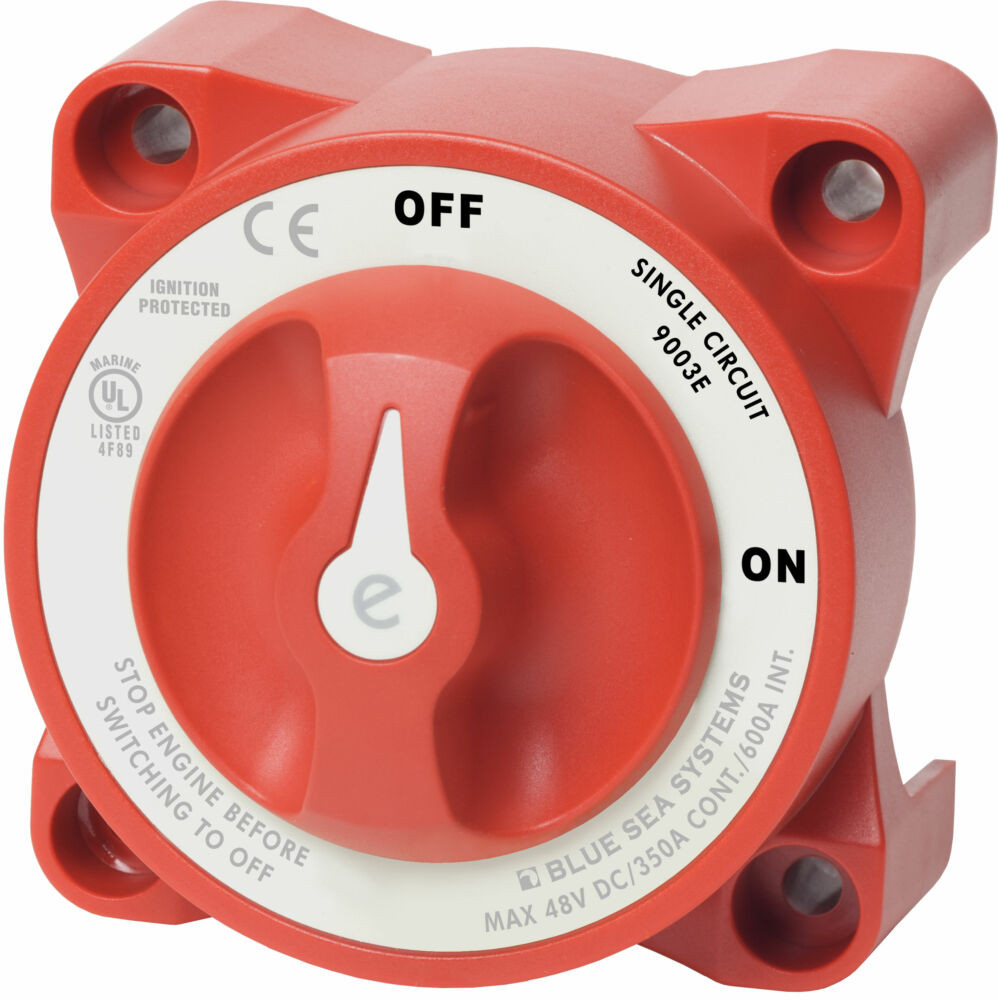

Blue Sea Systems Switch Battery e-Series ON/OFF

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Info

Current (A):

350

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

350

Switch position:

OFF/ON

Switch mechanism:

Mechanikus

Max Voltage:

48V DC

Website:

https://www.bluesea.com/products/9003e/e-Series_On...

Weight:

430 g/db

Technical specification

Specifications
Switch Type	Single Circuit ON-OFF
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	48V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	350A
Intermittent Rating	600A (5 min)
Cranking Rating 30 sec	1200A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper

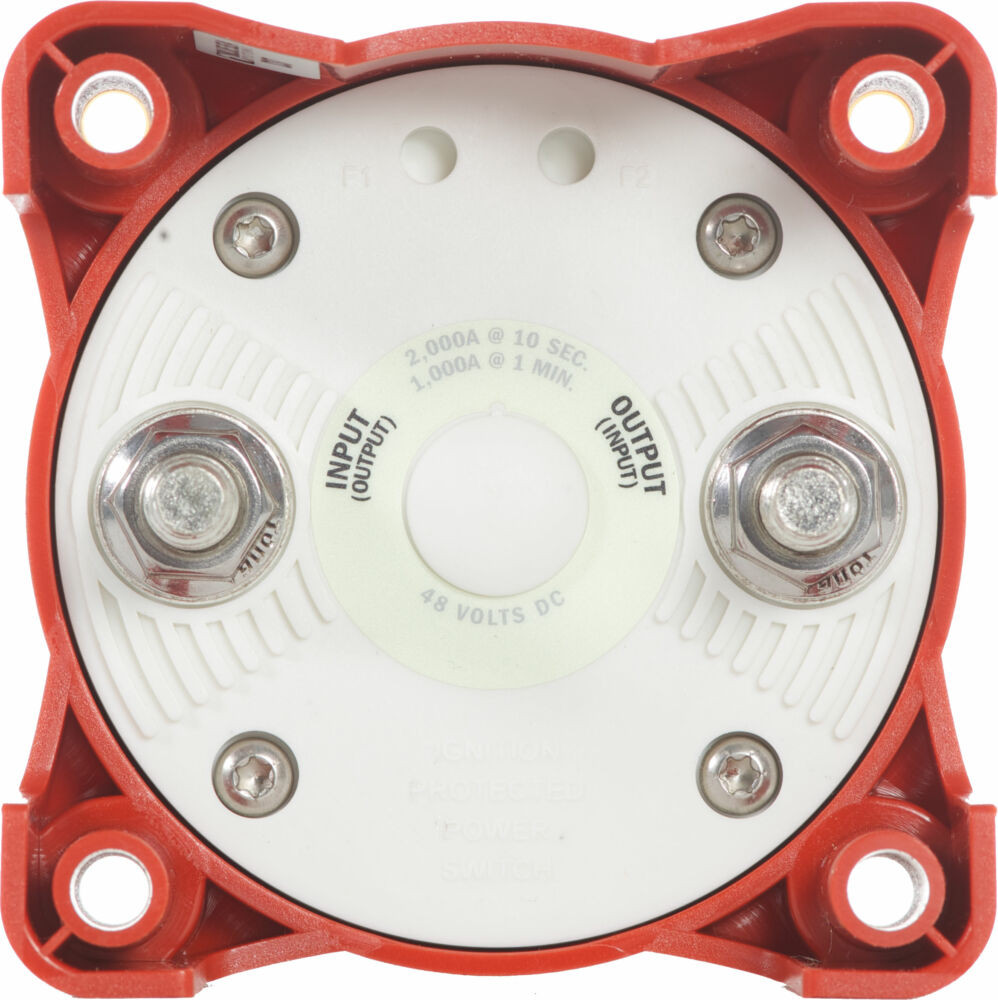

Terminal Stud Size	3/8" - 16 (M10)
Weight	0.95Lb (0.43 Kg)
Weight	1.30lb (0.59 kg)
