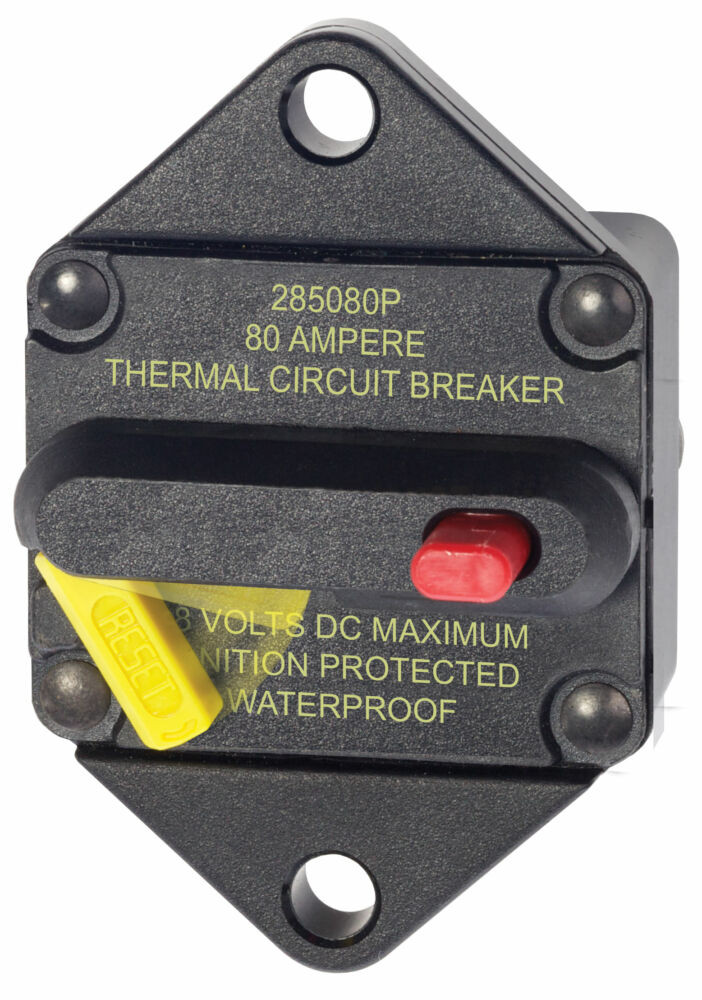

Blue Sea Systems Circuit Breaker, Bus 285 Panel 80A

Csomagajánlatok

• Details
• Info
• Technical specification

Details

Blue Sea Systems Circuit Breaker, Bus 285 Panel 80A

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant
• Combines switching and circuit breaker function into one unit*
• "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected.

Info

Current (A):

80

Connectable Circuit:

DC

Energy distribution category:

Hőkapcsoló

Max Voltage:

48V DC

Website:

https://www.bluesea.com/products/7086/285-Series_C...

Weight:

230 g/db

Technical specification

Specifications
Amperage	80A
Maximum Voltage	48V DC
Mounting	Panel Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud	M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Weight	0.50lb (0.23 kg)
