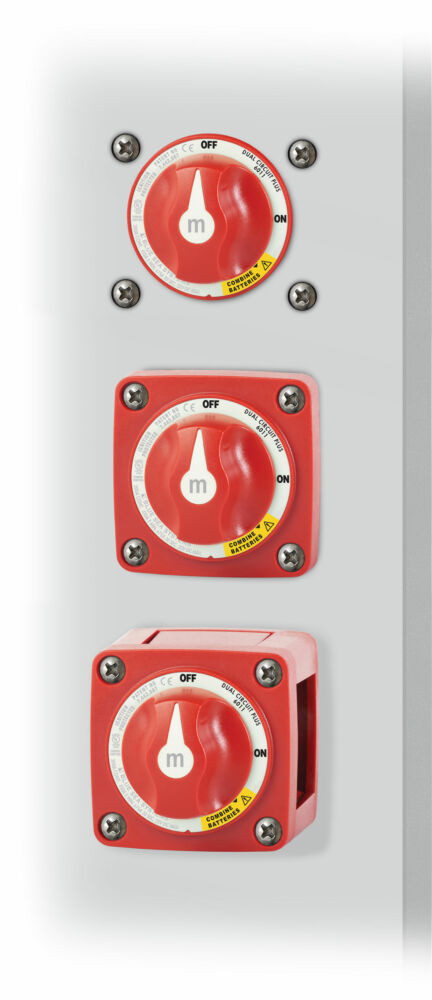

Blue Sea Systems Switch Battery m-Series Dual Circuit Plus Red, (Akkumulátor kapcsoló)

Csomagajánlatok

• Details
• Info
• Technical specification
• Download User Manual

Details

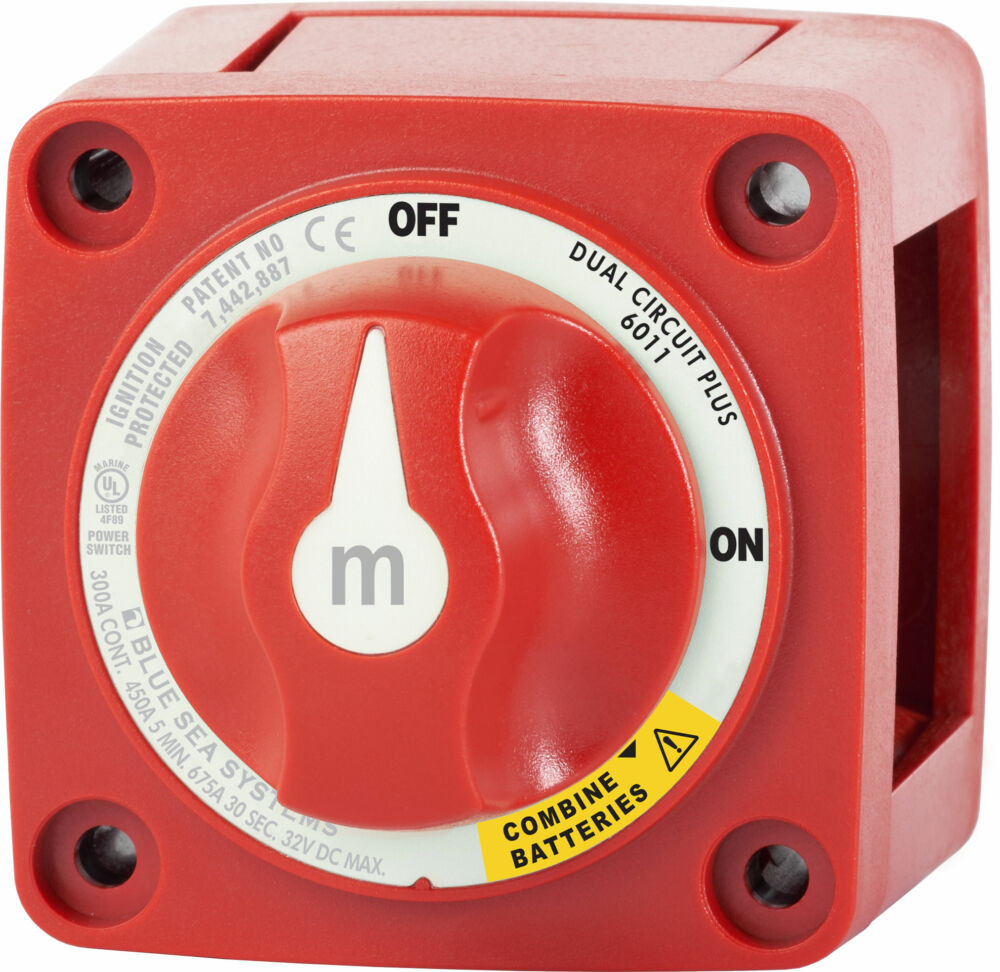

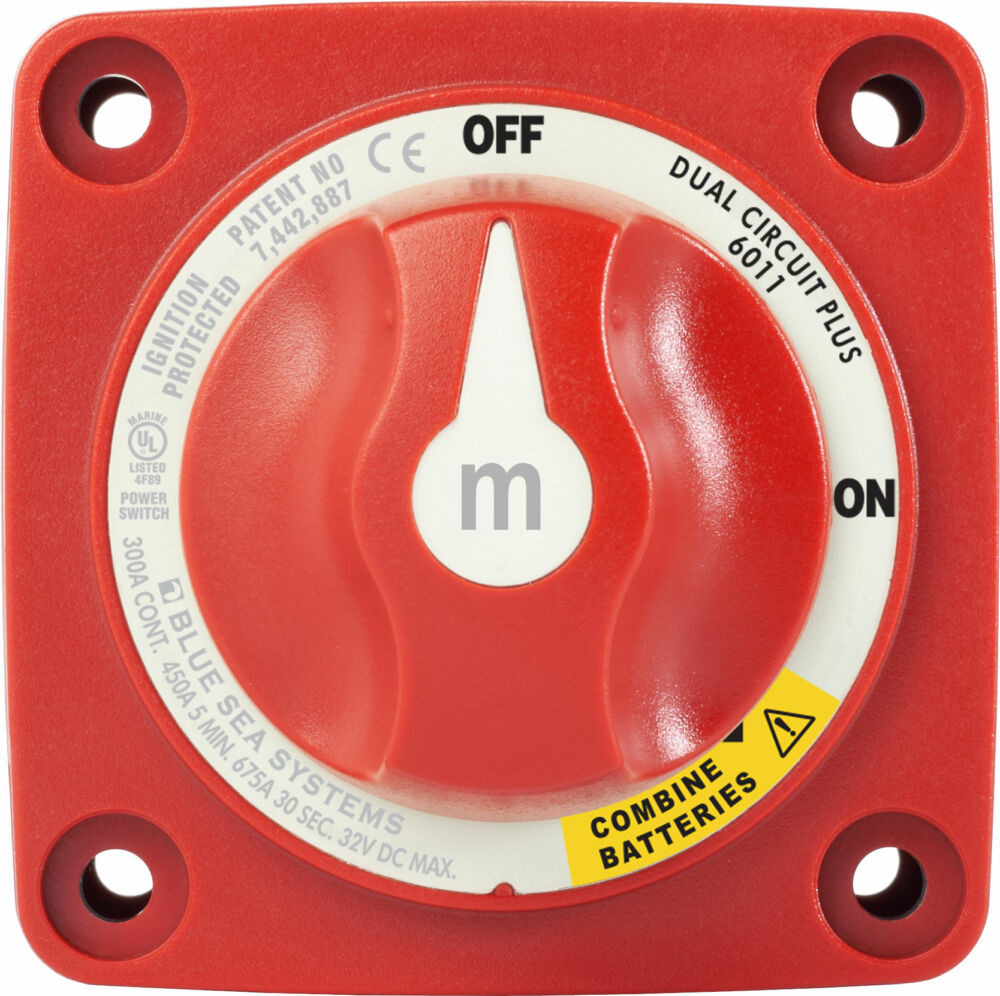

Blue Sea Systems Switch Battery m-Series Dual Circuit Plus Red

Simultaneously switches two isolated battery banks or combines battery banks to all loads

• Make before break contact design allows switching between battery banks without power interruption

Info

Current (A):

300

Connectable Circuit:

DC

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/1+2

Switch mechanism:

Mechanikus

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/6011/m-Series_Min...

Weight:

360 g/db

Technical specification

Specifications
Switch Type	Dual Circuit Plus
Color	Red
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC

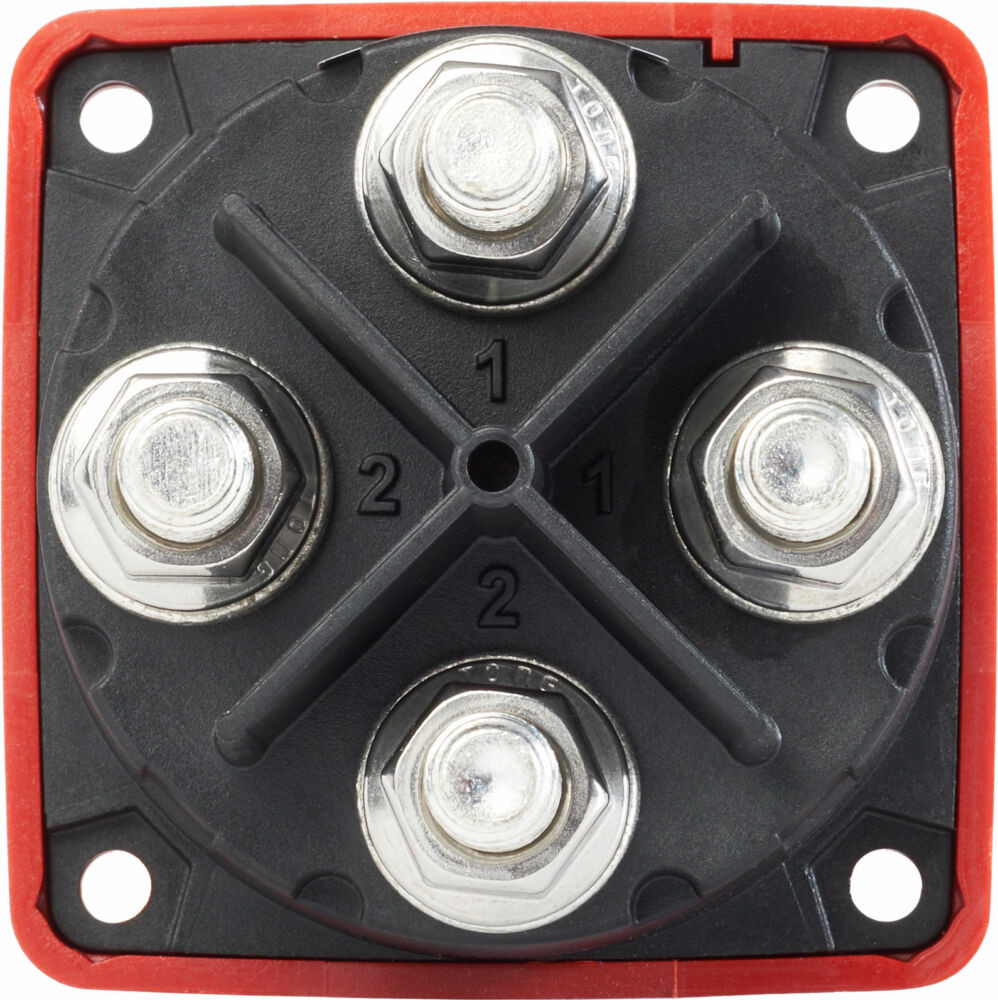

Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.80Lb (0.36 Kg)
Weight	0.80lb (0.36 kg)
