Blue Sea Systems Switch Battery m-Series Dual Circuit (Bulk) (5db) , (Akkumulátor kapcsoló)

Price: 139 396 Ft
without VAT: 109 761 Ft+VAT (29 635 Ft)

Blue Sea Systems Switch Battery m-Series Dual Circuit (Bulk) (5db) , (Akkumulátor kapcsoló)

Name: Blue Sea Systems Switch Battery m-Series Dual Circuit (Bulk) (5db) , (Akkumulátor kapcsoló)
Brand: BLUESEASYSTEMS
SKU: BSS-6010B
Price: 139396 HUF
Availability: InStock

In stock

Price: 139 396 Ft
without VAT: 109 761 Ft+VAT (29 635 Ft)

Unit price: Price: 27 879 Ft/qty
without VAT: 21 952 Ft/qty+VAT (5 927 Ft/qty)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

6010B-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

qty

Main warehouse

In stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Simultaneously switches two isolated battery banks

Details

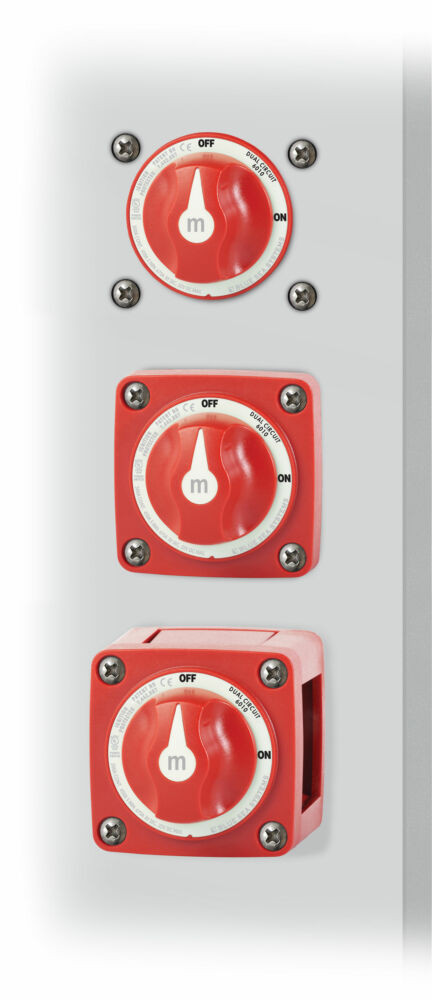

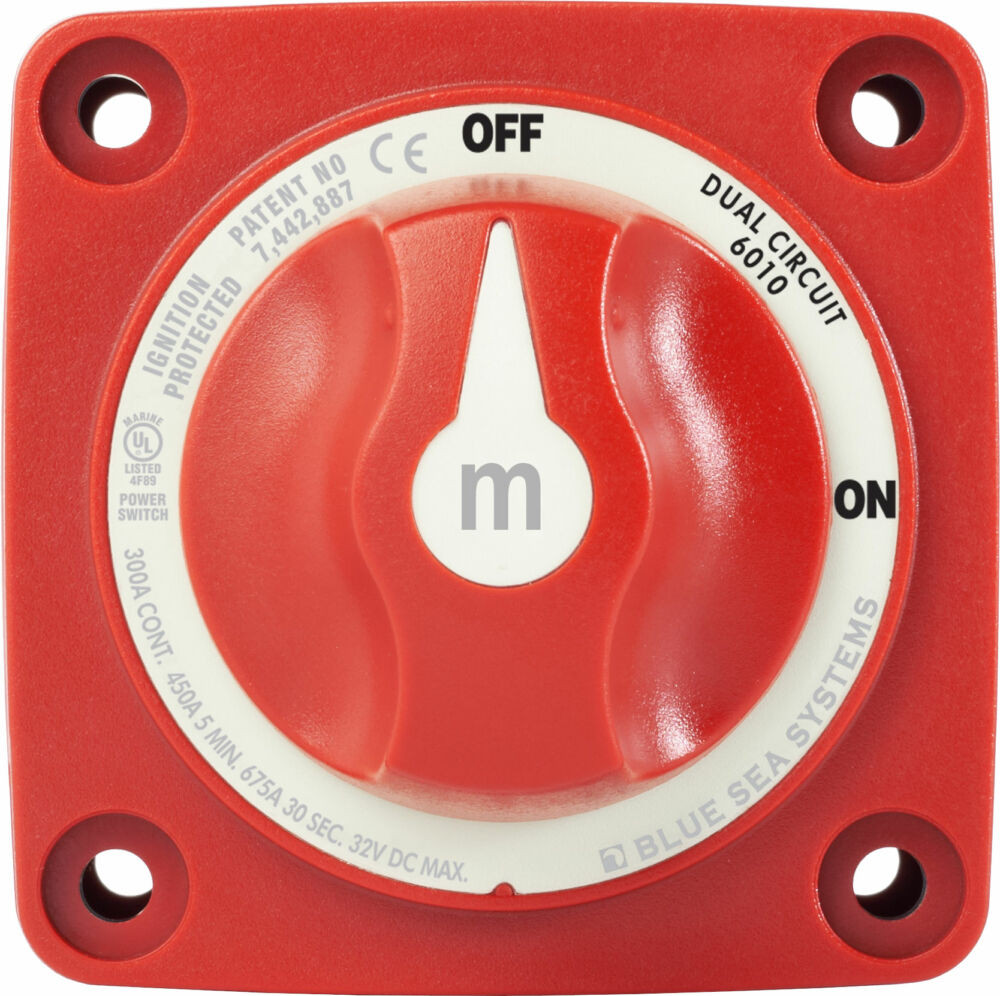

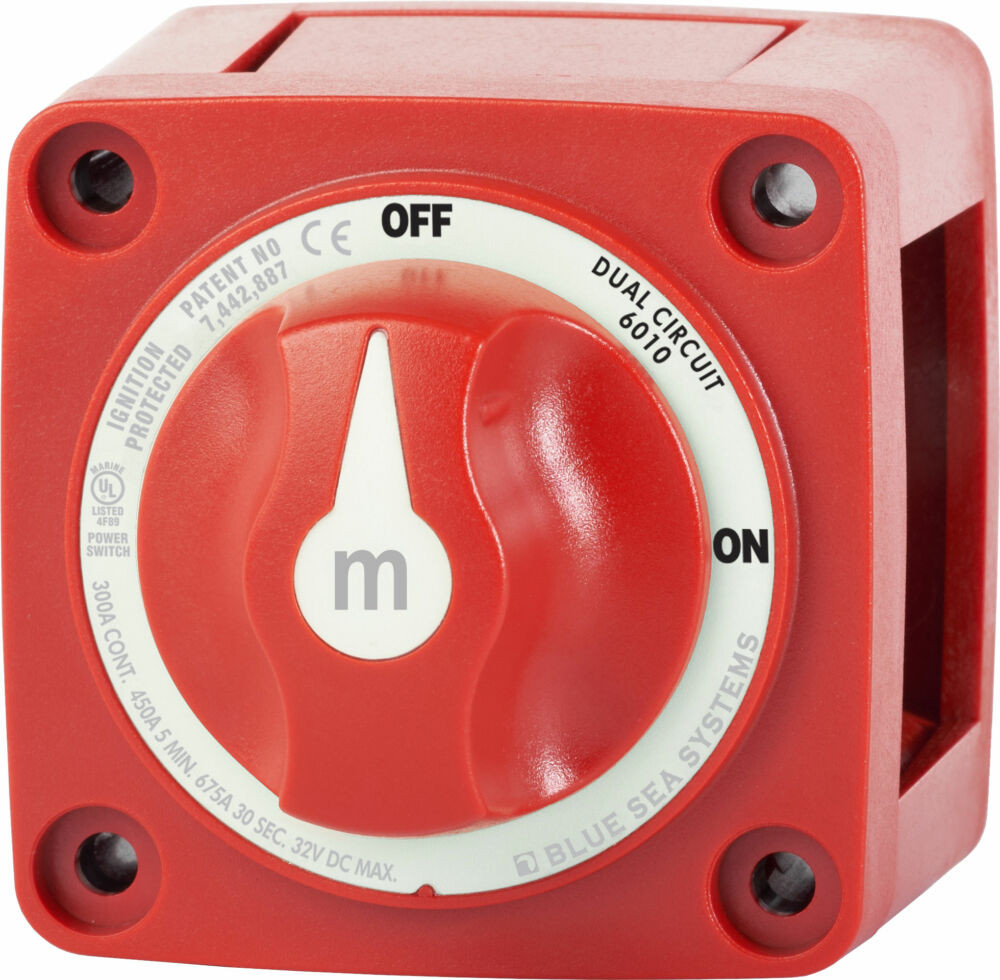

Blue Sea Systems Switch Battery m-Series Dual Circuit

Simultaneously switches two isolated battery banks

Info

Input voltage (DCV):

12/24

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/ON

Switch mechanism:

Mechanikus

Available in a package:

Igen

Website:

https://www.bluesea.com/products/6010/m-Series_Min...

Weight:

360 g/qty

Technical specification

Specifications
Switch Type	Dual Circuit
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC

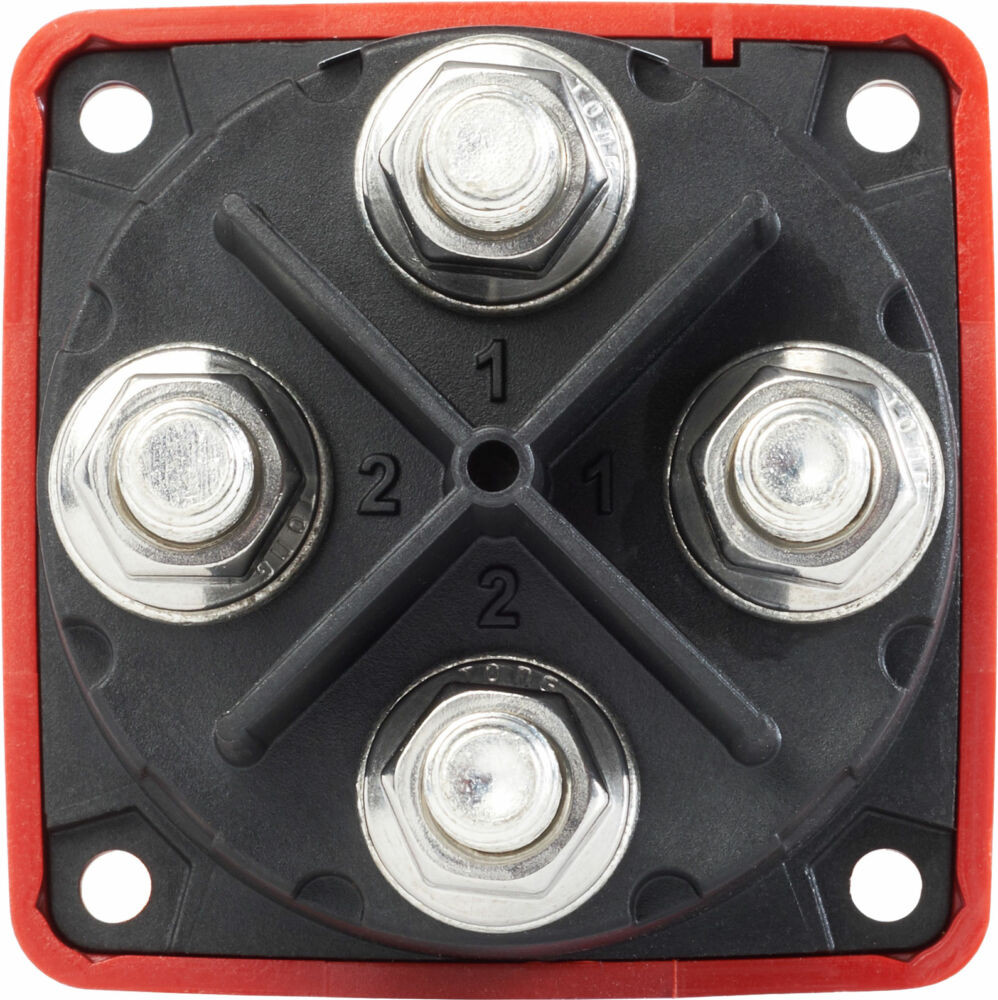

Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	450A (5 min)
Cranking Rating 30 sec	675A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.80Lb (0.36 Kg)
Weight	0.80lb (0.36 kg)
