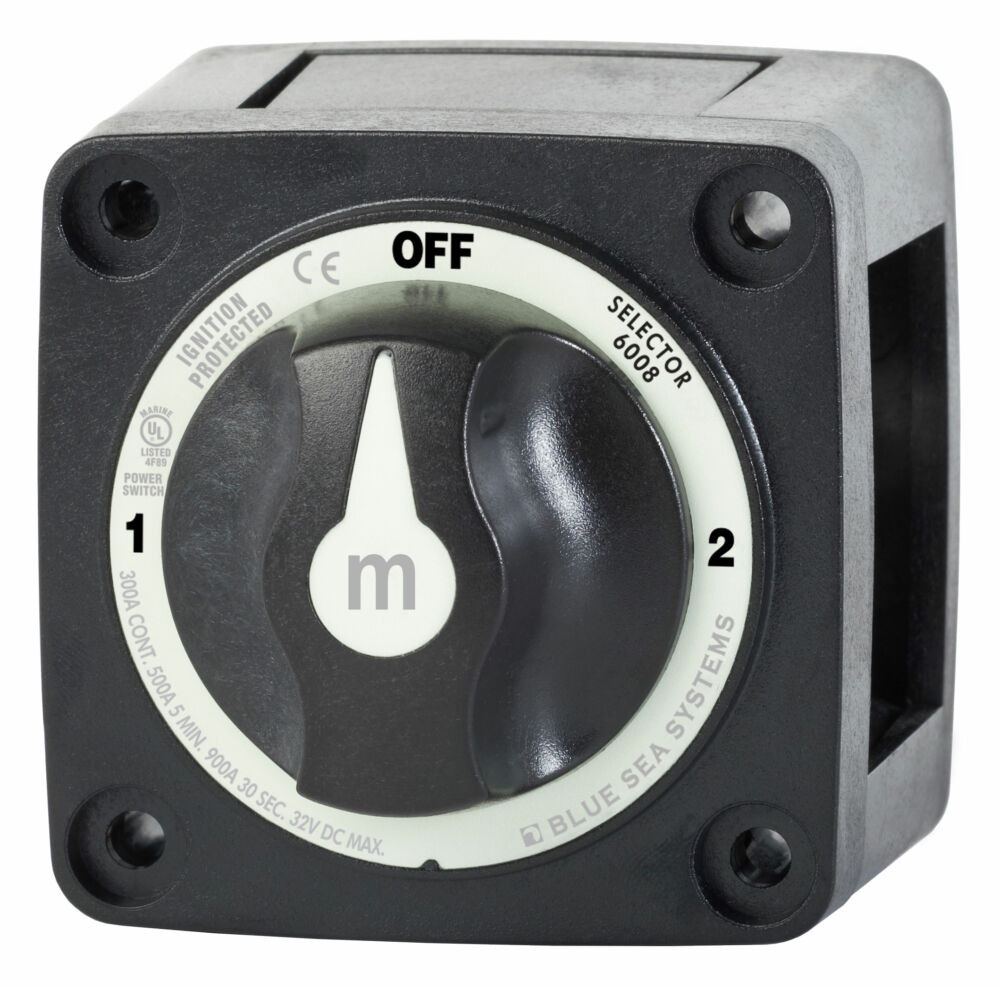

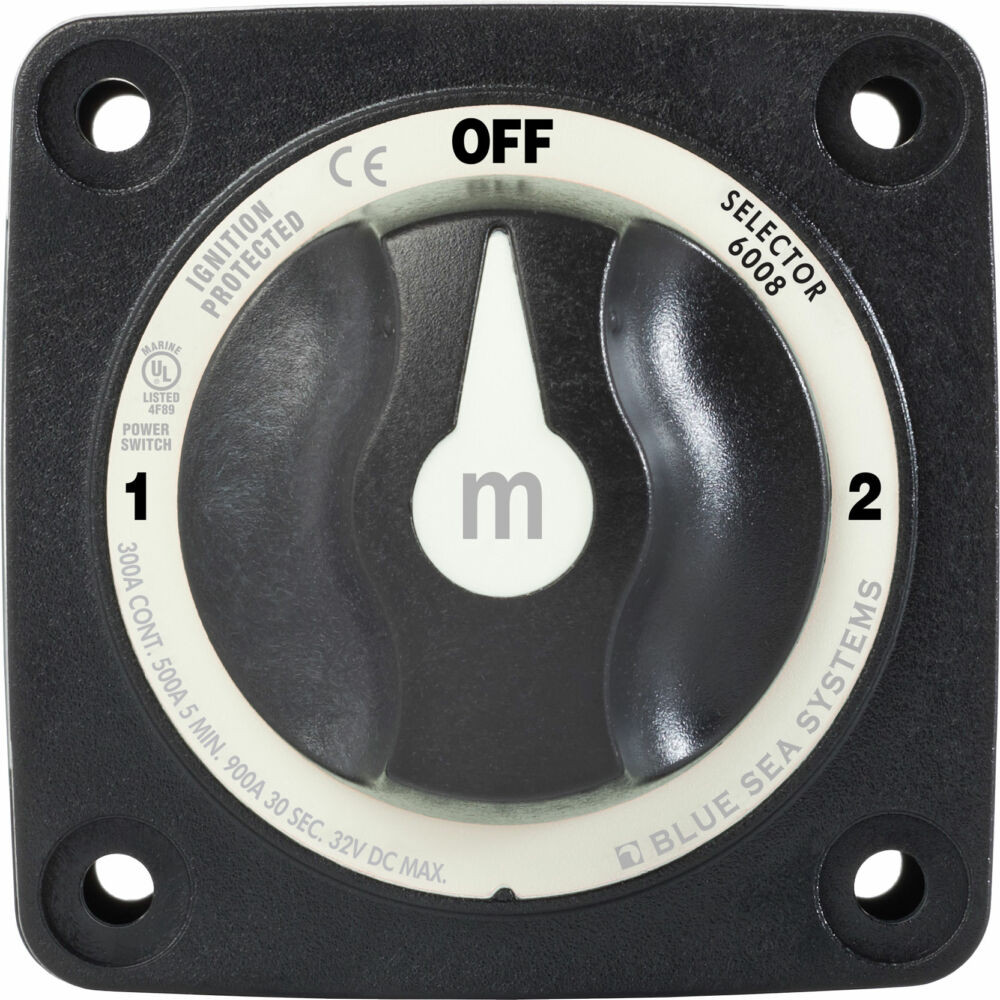

Blue Sea Systems Switch Battery m Series Selector 3 Position Black

Price: 30 178 Ft
without VAT: 23 762 Ft+VAT (6 416 Ft)

Blue Sea Systems Switch Battery m Series Selector 3 Position Black

Name: Blue Sea Systems Switch Battery m Series Selector 3 Position Black
Brand: BLUESEASYSTEMS
SKU: BSS-6008200
Price: 30178 HUF
Availability: InStock

In stock

Price: 30 178 Ft
without VAT: 23 762 Ft+VAT (6 416 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

6008200-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Switches isolated battery banks to all loads or combines battery banks to all loads

Details

Blue Sea Systems Switch Battery m Series Selector 3 Position Black

Switches isolated battery banks to all loads or combines battery banks to all loads

Info

Current (A):

300

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/1/2

Switch mechanism:

Mechanikus

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/6008200/m-Series_...

Weight:

350 g/db

Technical specification

Specifications
Switch Type	Selector 3 Position
Color	Black
Switch Positions	3
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 Min)
Cranking Rating 30 sec	900A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.77Lb (0.35 Kg)
