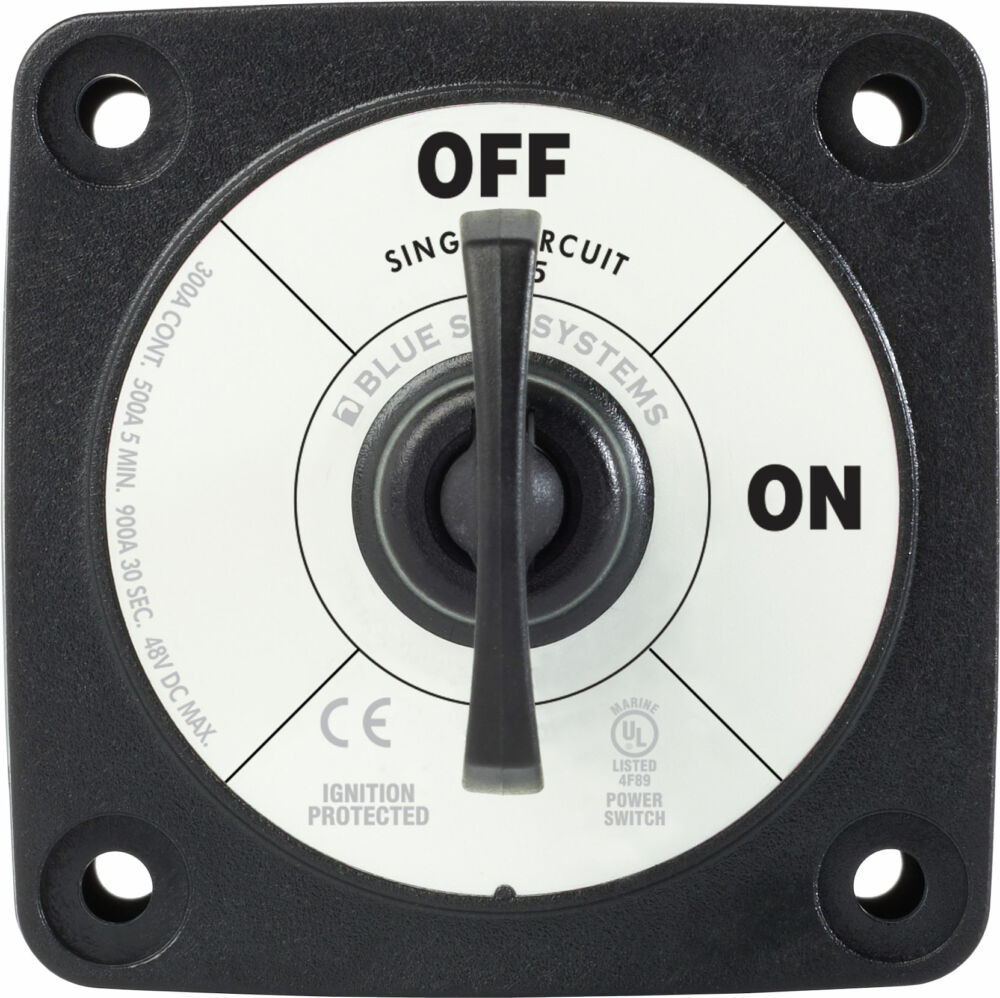

Blue Sea Systems Switch Battery m-Series ON/OFF With Locking Key Black

Switches a single battery to a single load group

• Ignition protected—safe for installation aboard gasoline powered boats

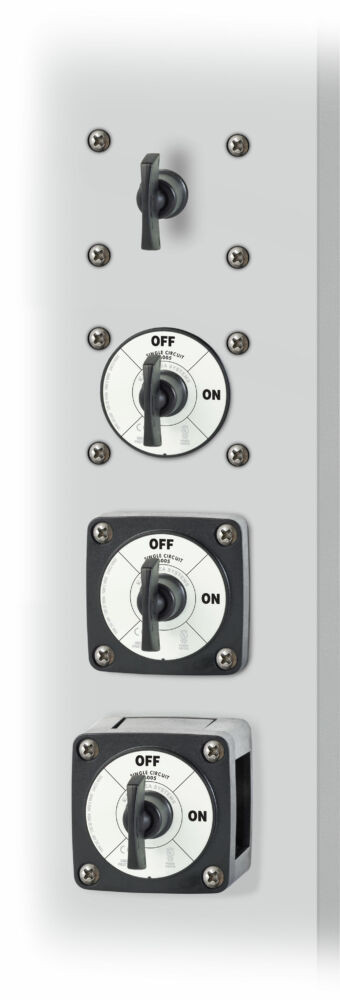

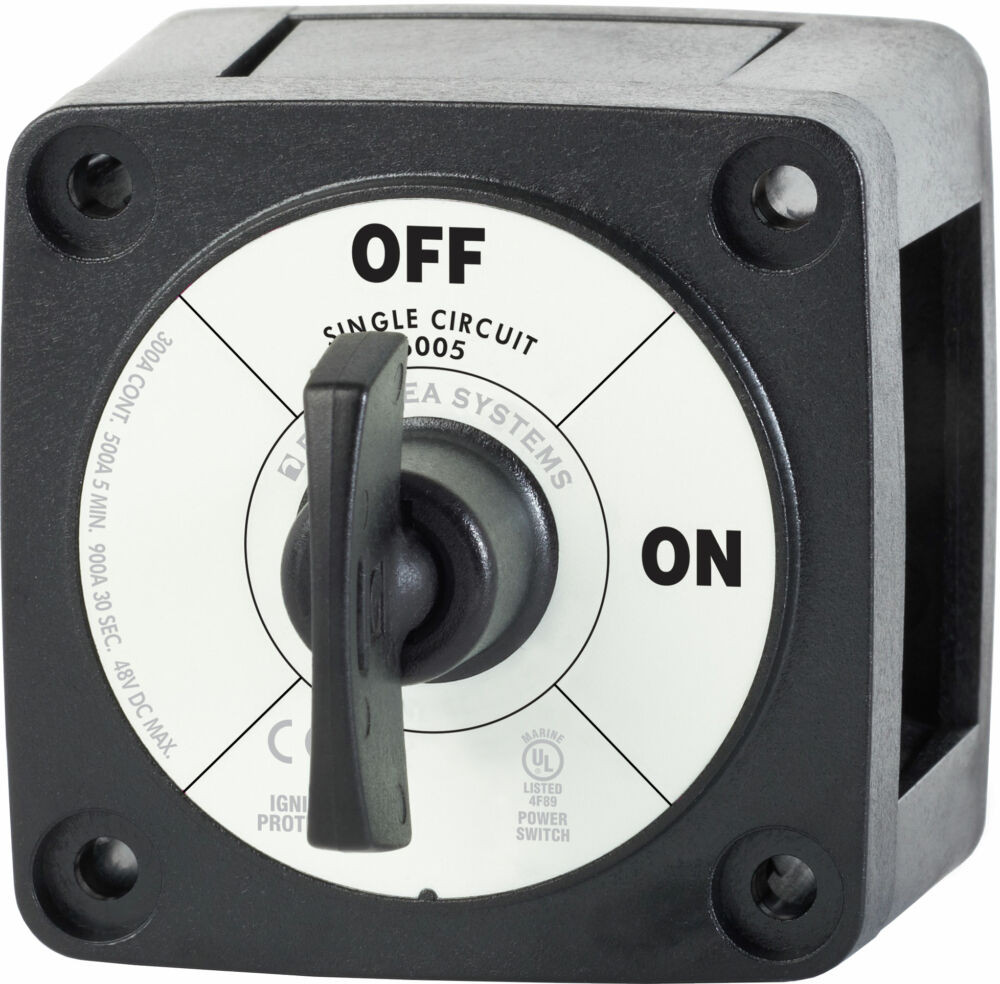

• Case design allows surface, front panel, or rear panel mounting

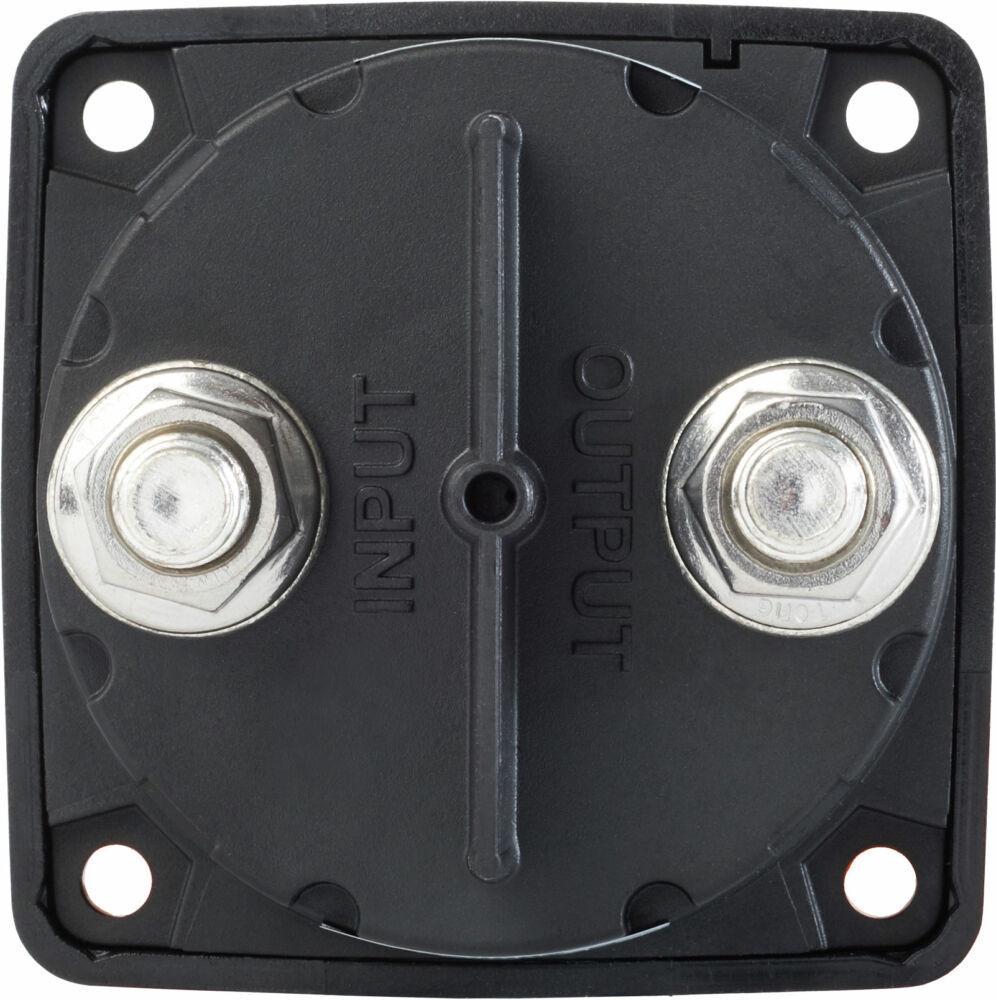

• Isolating cover with snap-on sections protects rear contacts

Info

Current (A):

300

Connectable Circuit:

DC

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

300

Switch position:

OFF/ON

Switch mechanism:

Mechanikus

Max Voltage:

48V DC

Website:

https://www.bluesea.com/products/6005200/m-Series_...

Weight:

280 g/db

Technical specification

Specifications
Switch Type	Single Circuit ON-OFF
Color	Black
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	48V DC
Stud Size	3/8"
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous Rating	300A
Intermittent Rating	500A (5 min)
Cranking Rating 30 sec	900A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.62Lb (0.28 Kg)
Weight	0.62lb (0.28 kg)
