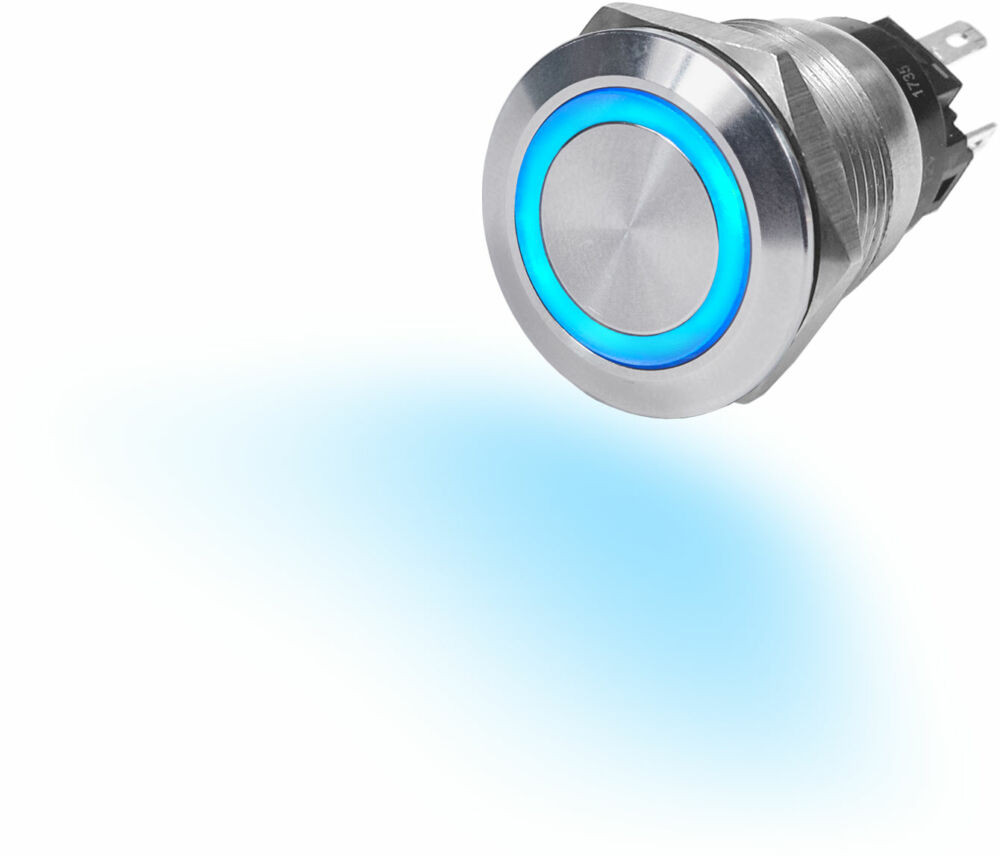

Blue Sea Systems Switch Button Stainless Steel 10A Off-(On) Blue (5db)

Name: Blue Sea Systems Switch Button Stainless Steel 10A Off-(On) Blue (5db)
Brand: BLUESEASYSTEMS
SKU: BSS-4161
Price: 63288 HUF
Availability: InStock

In stock

Price: 63 288 Ft
without VAT: 49 833 Ft+VAT (13 455 Ft)

Unit price: Price: 12 658 Ft/qty
without VAT: 9 967 Ft/qty+VAT (2 691 Ft/qty)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

4161-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

qty

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

10A continuous
Single Pole Double Throw or Single Pole Single Throw
Can be wired for normally open or normally closed
Available in Blue & Red
Available in momentary and non-momentary
Installs with 0.110inch quick connects (included in retail package)

Details

Blue Sea Systems Switch Button Stainless Steel 10A Off-(On) Blue

10A continuous
Single Pole Double Throw or Single Pole Single Throw
Can be wired for normally open or normally closed
Available in Blue & Red
Available in momentary and non-momentary
Installs with 0.110inch quick connects (included in retail package)

Info

Input voltage (DCV):

Current (A):

Connectable Circuit:

Switching mode:

Nyomógomb

Energy distribution category:

Kapcsoló

Available in a package:

Igen

Website:

https://www.bluesea.com/products/4161/10A_Push_But...

Weight:

90 g/qty

Technical specification

Specifications
Action	OFF-(ON)
Amperage	10A @ 12V DC Resistive 3A @ 12V Inductive
Nominal Voltage	12V DC
Maximum LED Operating Current	20mA
Minimum Operating Temperature	-10° C
Maximum Operating Temperature	70° C
Minimum Storage Temperature	-55° C
Maximum Storage Temperature	85° C
Illumination	Independent – Separate contacts for LED power
Max Panel Thickness	0.31in (7.87 mm)
Mounting Hole	¾” (19mm)
Switching Cycles	40,000
Termination	5 – 0.110inch Quick Connect terminals
Weight	0.20lb (0.09 kg)
