Blue Sea Systems Switch Battery HD Series ON/OFF, (Akkumulátor kapcsoló)

Price: 55 856 Ft
without VAT: 43 981 Ft+VAT (11 875 Ft)

Blue Sea Systems Switch Battery HD Series ON/OFF, (Akkumulátor kapcsoló)

Name: Blue Sea Systems Switch Battery HD Series ON/OFF, (Akkumulátor kapcsoló)
Brand: BLUESEASYSTEMS
SKU: BSS-3000
Price: 55856 HUF
Availability: InStock

In stock

Price: 55 856 Ft
without VAT: 43 981 Ft+VAT (11 875 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

3000-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats

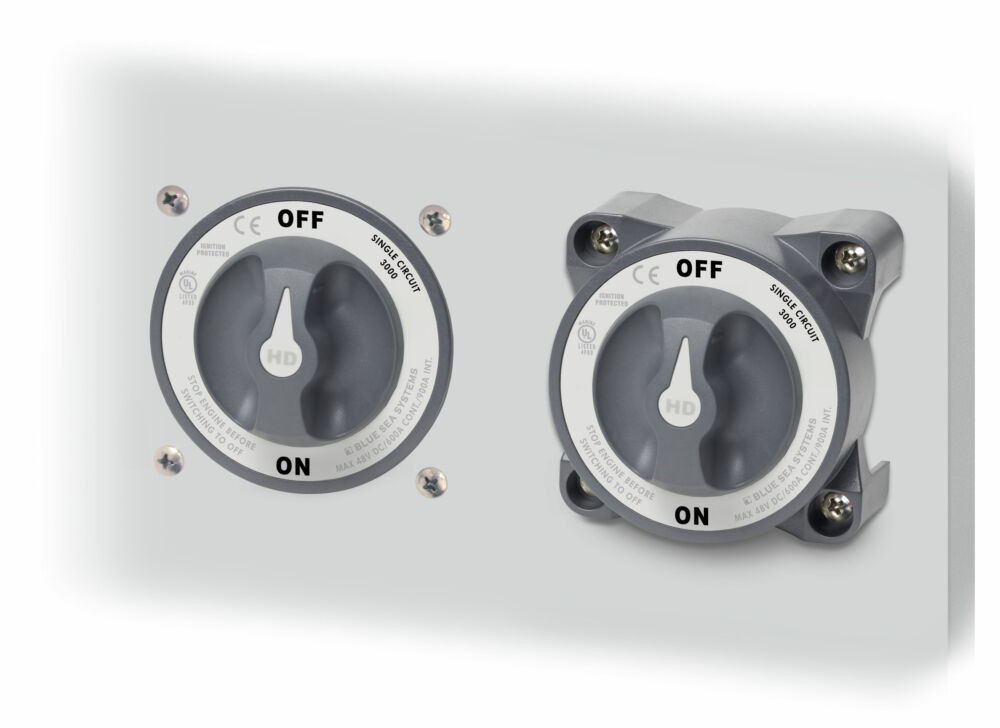

Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (95mm²) battery cables

Details

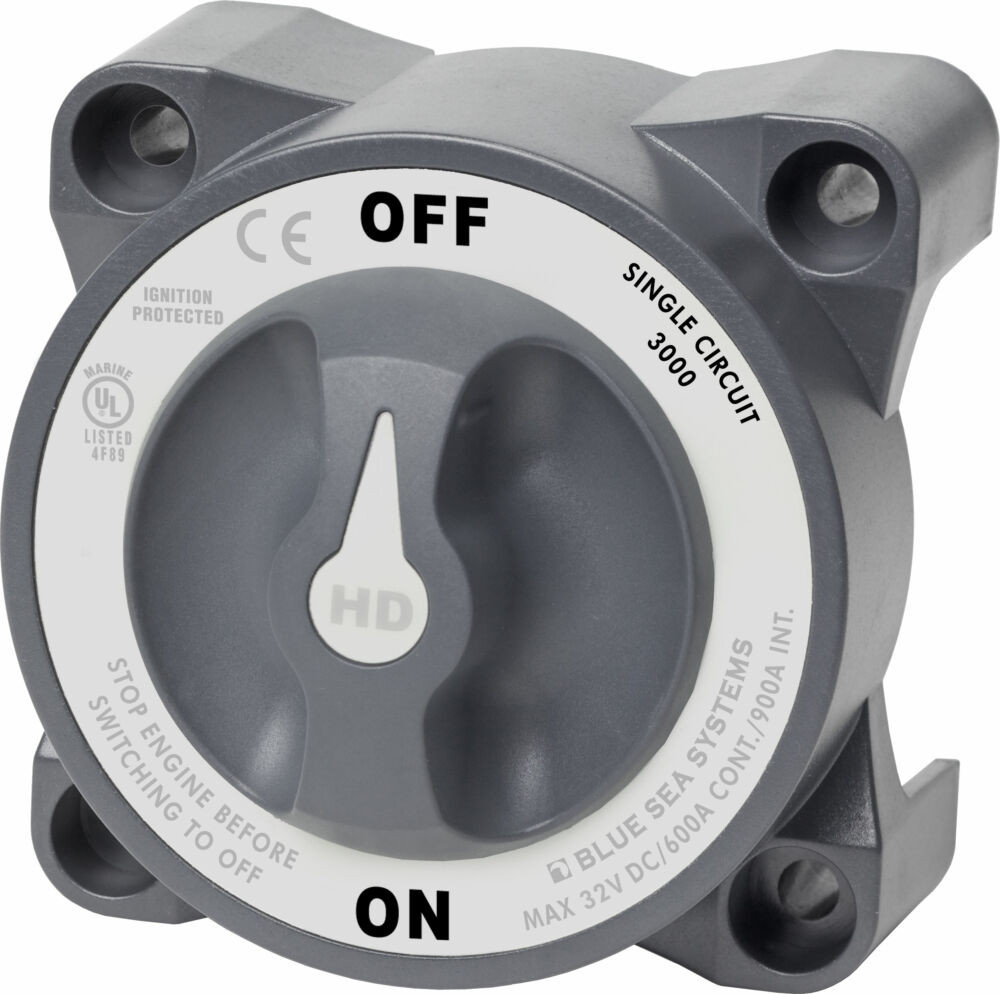

Blue Sea Systems Switch Battery HD Series ON/OFF

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (95mm²) battery cables

Info

Current (A):

600

Connectable Circuit:

Energy distribution category:

Akkumulátor kapcsoló

Main switch Current (A):

600

Switch position:

OFF/ON

Switch mechanism:

Mechanikus

Max Voltage:

32V DC

Website:

https://www.bluesea.com/products/3000/HD-Series_He...

Weight:

590 g/db

Technical specification

Specifications
Switch Type	Single Circuit ON-OFF
Color	Grey
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	600A
Intermittent Rating	900A (5 min)
Cranking Rating 30 sec	1750A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Terminal Stud Size	1/2" (M12)
Weight	1.30Lb (0.59 Kg)
Weight	1.30lb (0.59 kg)
