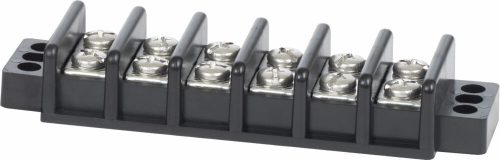

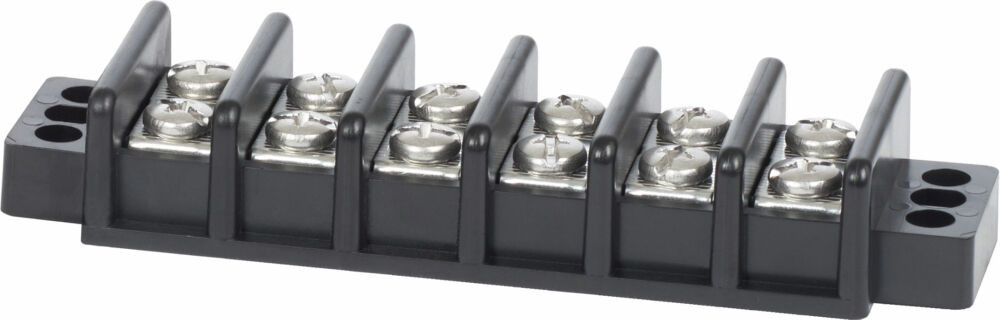

Blue Sea Systems Terminal Block/Independent 6 Circuits 30A, (Kötőpont)

Name: Blue Sea Systems Terminal Block/Independent 6 Circuits 30A, (Kötőpont)
Brand: BLUESEASYSTEMS
SKU: BSS-2506
Price: 4336 HUF
Availability: InStock

In stock

Price: 4 336 Ft
without VAT: 3 414 Ft+VAT (922 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

2506-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits

Details

Blue Sea Systems Terminal Block/Independent 6 Circuits 30A

Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits

Info

Current (A):

Energy distribution category:

Kábelrendezés

Number of connection point:

Max Voltage:

600V AC/DC

Website:

https://www.bluesea.com/products/2506/Terminal_Blo...

Weight:

100 g/db

Technical specification

Specifications
Circuits	6
Length	4.38in (111.25 mm)
Maximum Voltage	600V AC/DC
Continuous Rating	30A
Base Material	UL 94 V0, PC
Bus Material	Nickel-Plated Brass
Mounting Screw	#10 [M5]
Screw Material	Stainless Steel
Screw Terminal Torque	10 in-lb (1.13 Nm)
Terminal Screws	M4
Wire Terminal Size	#8 [M4]
Weight	0.21Lb (0.1 Kg)
Weight	0.21lb (0.1 kg)
