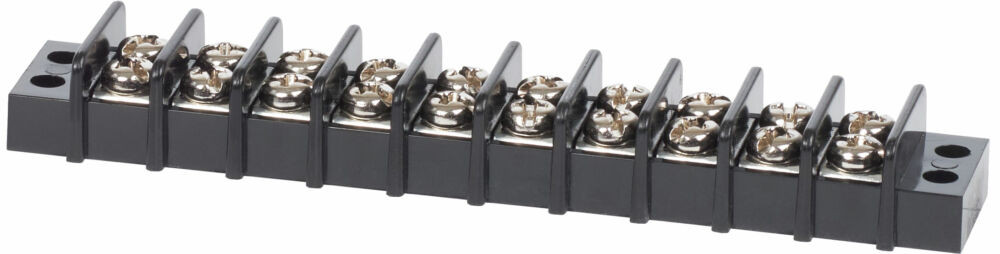

Blue Sea Systems Terminal Block 20A - 10 Circuit, (Kötőpont)

Name: Blue Sea Systems Terminal Block 20A - 10 Circuit, (Kötőpont)
Brand: BLUESEASYSTEMS
SKU: BSS-2410
Price: 5050 HUF
Availability: InStock

In stock

Price: 5 050 Ft
without VAT: 3 976 Ft+VAT (1 074 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

2410-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits

Details

Blue Sea Systems Terminal Block/Independent 10 Circuits 20A

Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits

Info

Current (A):

Energy distribution category:

Kábelrendezés

Number of connection point:

7-10

Max Voltage:

300V AC/DC

Website:

https://www.bluesea.com/products/2410/Terminal_Blo...

Weight:

60 g/db

Technical specification

Specifications
Circuits	10
Length	4.41in (112.01 mm)
Maximum Voltage	300V AC/DC
Continuous Rating	20A
Base Material	UL 94 V0, PC
Bus Material	Nickel-Plated Brass
Mounting Screw	#6 [M3.5]
Screw Material	Stainless Steel
Screw Terminal Torque	7 in-lb (0.79 Nm)
Terminal Screws	M3.5
Wire Terminal Size	#6 [M3]
Weight	0.13Lb (0.06 Kg)
Weight	0.11lb (0.05 kg)
