Blue Sea Systems BusBar 10 pontos közösítő sín fedéllel

Name: Blue Sea Systems BusBar 10 pontos közösítő sín fedéllel
Brand: BLUESEASYSTEMS
SKU: BSS-2300
Price: 11603 HUF
Availability: InStock

In stock

Price: 11 603 Ft
without VAT: 9 136 Ft+VAT (2 467 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

2300-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

The industry standard busbar for positive distribution
The industry standard busbar for the collection of negative or AC ground circuits

Details

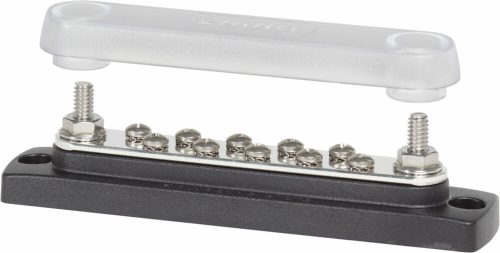

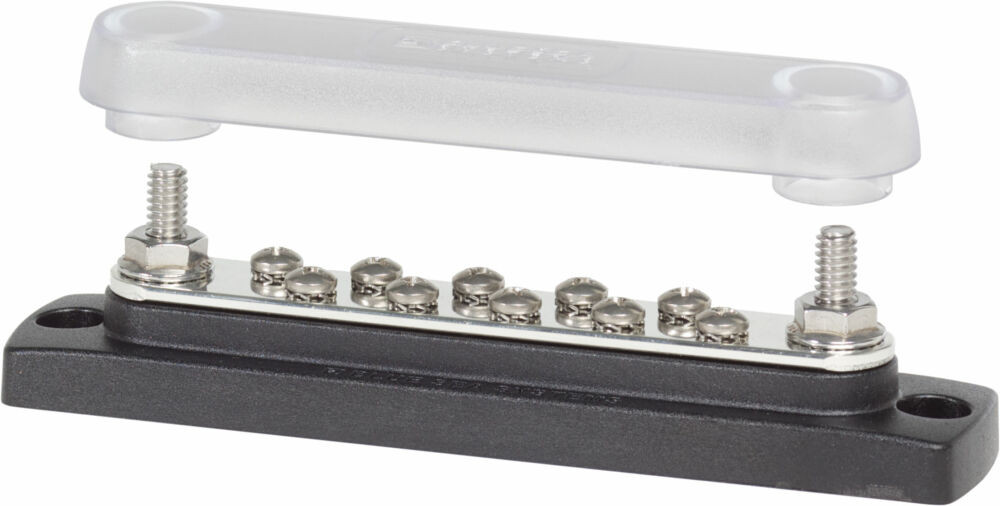

Blue Sea Systems BusBar 10 Gang Common Bus with Cover

The industry standard busbar for positive distribution
The industry standard busbar for the collection of negative or AC ground circuits

Info

Current (A):

130A AC, 150A DC

Energy distribution category:

Sín és kötőpont

Number of connection point:

7-10

Max Voltage:

300V AC, 48V DC

Website:

https://www.bluesea.com/products/2300/Common_150A_...

Weight:

170 g/db

Technical specification

Specifications
Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	10
Number of Terminal Studs	2
Terminal Type	1/4" Stud #8-32 Screw
Continuous Rating	130A AC 150A DC
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Cover Material	Clear Polycarbonate
Screw Terminal Torque	15 in-lb (1.69 Nm)
Stud Torque	60 in-lb (6.78 Nm)
Weight	0.37Lb (0.17 Kg)
Weight	0.37lb (0.17 kg)
