Blue Sea Systems M2 Vessel Monitor System VSM, (kijelző)

Price: 238 109 Ft
without VAT: 187 487 Ft+VAT (50 622 Ft)

Blue Sea Systems M2 Vessel Monitor System VSM, (kijelző)

Name: Blue Sea Systems M2 Vessel Monitor System VSM, (kijelző)
Brand: BLUESEASYSTEMS
SKU: BSS-1850
Price: 238109 HUF
Availability: InStock

In stock

Price: 238 109 Ft
without VAT: 187 487 Ft+VAT (50 622 Ft)

Manufacturer:

BLUESEASYSTEMS

Manufacturer Article number:

1850-BSS

Warranty period :

Fogyasztói garancia: Jogszabály szerint ársávos! Cég, E.V: 1 év

Üzembe helyezés, üzemben tartás :

A termék nem megfelelő beszerelése, telepítése garanciavesztéssel jár! Ezért adott esetben kérnénk forduljon szakemberhez!

Main warehouse

Out of stock

External warehouse

In stock

Delivery time approx: 1-2 Weeks!

Performs comprehensive monitoring of four critical systems in one compact organic LED digital monitor

Details

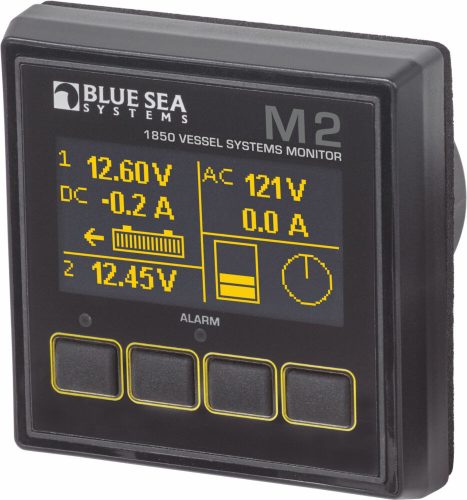

Blue Sea Systems M2 Vessel Monitor System VSM

Performs comprehensive monitoring of four critical systems in one compact organic LED digital monitor

DC System Monitoring (up to two batteries)

One input monitors the DC voltage, state-of-charge, current for one battery bank and another input monitors the voltage of an additional battery bank. Alarms include high and low voltage, high current, and low battery.

AC System Monitoring

The VSM monitors a single AC voltage, current, and frequency. Alarms include high and low voltage, high current, and high and low frequency.

Bilge & Tank Monitoring

The VSM has two inputs that can be configured as a bilge or tank monitor. When configured as a bilge input, monitoring functions include pump active, cycle count in the last 24-hours, average cycles in a typical 24-hour period, and total cycles. High alarms can be set for both the minutes of run time in the last hour as well as the number or cycle counts in the last 24-hours. When configured as a tank input, tank status can be represented in both capacity (gallons or liters) or as a percentage of capacity. Custom tank shapes can be auto-calibrated or programmed. Both high and low level alarms can be set for all tanks.

NMEA 2000 certified and uses standard connectors. This allows a single network backbone to be installed for multiple NMEA 2000 devices. The M2 VSM can share certain monitoring functions with other NMEA 2000 compliant screens, such as CZone Displays Touch 5 & Touch 10.

Info

Input voltage (DCV):

12/24/48V DC, 120/230V AC

Current (A):

150A AC, 500A DC

Display size (inch):

Network Protocol:

NMEA2000

Number of outputs:

Energy distribution category:

Mérő, panel

Displayable data:

Multikijelző

Website:

https://www.bluesea.com/products/1850/M2_Vessel_Sy...

Weight:

680 g/db

Technical specification

Specifications
Meter	Bilge Current Tank Voltage
Nominal Voltage	120V AC 230V AC 12V DC 24V DC 48V DC
Operating Voltage	40-300V AC 7-70V DC
Current Accuracy	+/- 2% AC +/- 1% DC
Current Range	0-150A AC -500 to 500A DC
Frequency	40-90Hz
Minimum Current Draw	18.8mA @ 12V, backlight off 35mA @ 12V, backlight off
Voltage Accuracy	+/- 1%
